CAB EOS2 Thermal Transfer Printer - 1
  • CAB EOS2 Thermal Transfer Printer - 1

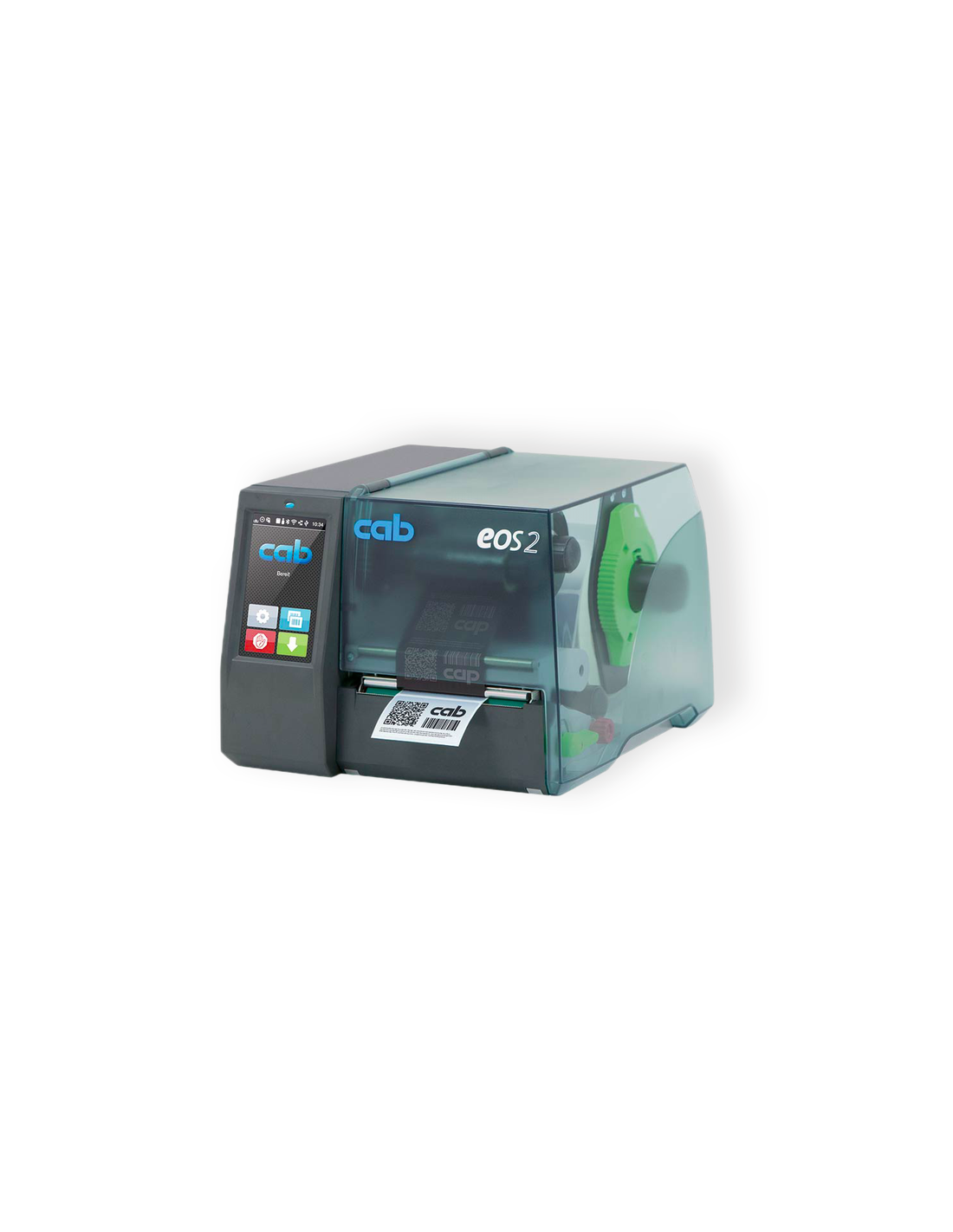

CAB EOS2 Thermal Transfer Printer

De 1 155,00€ à 1 300,00 Tax excluded

the printer

Tax excluded Livraison : 1 à 3 semaines
  • Touch-screen and backlit LCD
  • Compact size
  • Available in mobile version (label roll Ø up to 152 mm)
Read more...
Resolution
Mobility
Quantity

Total : 1155.00€ HT

Production
At home on Monday 03 March 2025

The CAB EOS2 thermal transfer printer allows you to print your own personalized labels according to your needs with a variable logo, text, numbering and / or barcode. The labels thus printed have a print quality close to those offered at the beginning of the catalog.

Our CAB thermal transfer printer: a small format for great performance

The compact design of this CAB label printer makes it ideal for small spaces. All components and the outer casing of this German-made thermal transfer label printer are perfectly matched to each other and are made of high-quality materials. The label printing resolution is 203 or 300 dpi depending on the model selected. With a print speed of up to 150 mm/s, you get all the labels you need quickly.

The display makes this thermal transfer printer very easy to use. It is very easy to view and select all available functions from the display.

Intuitive operation, from label design to printer maintenance

Supplied with the CAB label printer, the Cablabel S3 Lite software allows you to design your labels. The numerous tools available allow you to obtain a final personalised label of the highest quality and most adapted to your needs. The Cablabel S3 Lite software does not allow the printing of variable barcodes. The Pro version of the Cablabel S3 software allows this type of printing, as well as the connection and import of databases from the software, installed on a computer. You can try this Pro version for 30 days before installing it permanently on your computer.

After designing your custom labels, you can save the file to a USB stick or to the internal memory of the EOS2 printer. Adding data to the CAB thermal transfer label printer is easy with four USB ports available: one on the control panel, one on the external control panel and two on the back of the printer. You can connect a USB stick, service key, Wi-Fi stick, Bluetooth, keyboard or barcode reader to these ports. This means that the roll label can be printed in several print runs, the printer keeps all files saved in its memory and operates autonomously without the need to be connected to a computer.

The large transparent cover allows you to check the condition of the consumable rolls at any time. In addition, the label and ribbon rolls are easily inserted. Once loaded, the label roll holder is automatically centred when the cover is closed, while the ribbon holder can be adjusted to the width of the ribbon roll by means of its stop. The label sensor identifies the start and end of the roll.

The print head can be removed without tools to be cleaned or replaced.

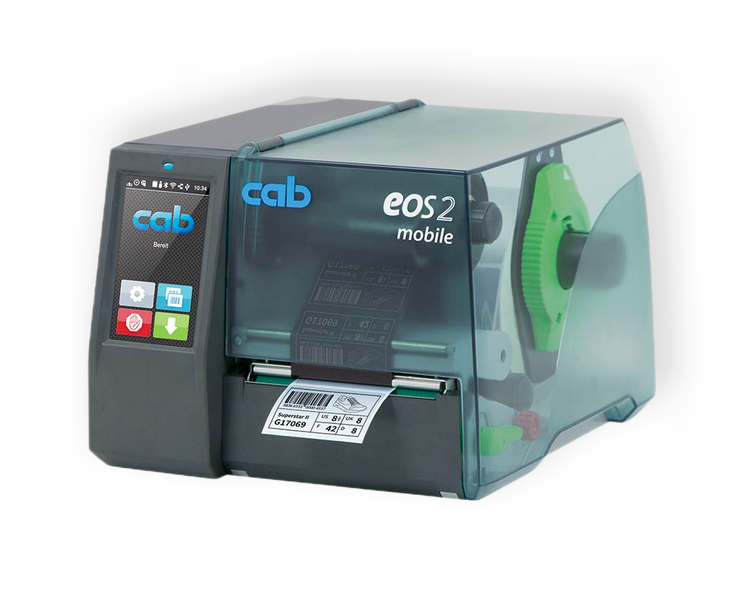

A mobile version of this thermal transfer printer to take anywhere printer-thermal-transfer-cab-eos2.

The EOS2 thermal transfer printer is also available in a mobile version. With an input voltage of 24 V, the printer can be powered by any suitable battery. The battery pack 2 for EOS allows you to carry out more than 500 print jobs in one day with a label size of 100x68 mm and 15% coverage. The charging time for this battery is 2 hours. The maximum printing width is then 105.7 mm. Data transfer can be done by WiFi or Bluetooth.

As an option, the battery capacity can be doubled if necessary, this corresponds to "battery pack 4".

This model of thermal transfer printer is very practical if no electrical connection is available.

imprimante-transfert-thermique-cab-eos1

The CAB EOS2 thermal transfer printer is delivered with a USB cable, a CD with Cablabel S3 Lite software, and the user manual.

SBE advises you: How to choose the best label printer?

Options et accessoires :

massicot-imprimante-transfert-thermique-cab-eos1 Paper cutter: a blade installed at the output of the personalized label of the CAB printer makes it possible to cut the label support after the printing of each roll label. So you have your labels printed in a stack. Personalization of the guillotine is possible to perforate the material in addition to the cut.
derouleur-externe-imprimante-transfert-thermique-cab-eos1 External dispenser: the label roll is automatically centered during insertion. This accessory cannot be used with the mobile version of the EOS printer.
tendeur-etiquettes-paravent-imprimante-transfert-thermique-cab-eos1 Screen tensioner for labels: the tensioner guides the labels in the form of a screen to the printer. The label printing is then more regular and precise. This accessory cannot be used with mobile EOS.
clavier-imprimante-transfert-thermique-cab-eos1 Standard keyboard: the label masks are designed with the Cablabel S3 software on a computer, then they are saved on a memory card, a USB key or in the internal memory of the printer. The keyboard, once connected to the printer via the USB port, allows the label mask to be completed with variable information such as a numbering. The thermal transfer printer can be used independently without being connected to the computer.

List of bar codes available for the Cablabel S3 Lite and Cablabel S3 Pro versions.

logiciel-code-barres-cablabel-s3

Options et accessoiriesPaper cut External dispenserTensioner for folding screen labels105-key USB alphanumeric keyboard
Price 247 € 104 € 78€ 40 €



To understand how best to choose your label printer, read our article on the 4 questions to ask yourself before buying a printer.

IMP-TT-EOS2-203

Data sheet

Unit
the printer
Conditioning
individually
Guarantee
1 year
Printing
Direct thermal and thermal transfer
Weight
4 kg
Storage temperature
0 - 60°C
Diameter of the roll core
38 to 76 mm

Download

Cablabel S3 (FR)

Mode d'emploi logiciel Cablabel S3

Download (3.82M)

Manuel d'utilisation EOS2

Download (1.56M)

No customer reviews for the moment.


Resolution 203dpi Ref. IMP-TT-EOS2-203

Quantités Prix € HT
Classic version
1 1155 €


Resolution 300dpi Ref. IMP-TT-EOS2-300

Quantités Prix € HT
Classic version
Prix € HT
Mobile version
1 1221 € 1300 €
