CAB MACH 4S thermal transfer printer

De 1,616.00€ à 2,503.00 Tax excluded
Tax excluded Livraison : 3 à 6 semaines
  • The best selection
  • High-quality finish
  • Ultra-competitive prices
  • Centre guidance
  • Robust
Read more...
Résolution
Modèle imprimante
Quantity

Total : 1,616.00 HT

En stock
At home on Tuesday 24 September 2019

printer-cab-thermal-transferWith this CAB MACH 4S thermal transfer printer, print your ownhigh-end technical labels in reels, singly or sequentially. This printer is ideal for the inventory, reference and identification at will of any type of property using text, variable sequence numbers or barcodes and logos.

The CAB MACH 4S thermal transfer printer for printing high-quality labels

Give yourself the freedom to print your own labels according to your needs with a logo, text, variable numbering and/or barcode with the MACH 4S thermal transfer printer. Available in 203, 300 or 600 dpi, you can print high-quality labels on paper, card, textile, synthetic, acrylate and tyvek or on our pre-printed labels. Depending on the model, the maximum printing width can range from 104 mm to 108.4 mm. Practical for small inventories. This MACH label printer is ideal for the healthcare sector, or for retailers to identify their products. Indispensable for administrators of schools or libraries, for inventory and management of equipment loans.

A simple and convenient thermal transfer printer:

- The lid with a large inspection window makes it possible to constantly check the condition of the rolls.
- Roll holder for quick setup.
- The automatic centring allows for installation of rolls of different widths.
- Easy changing and cleaning of label printing rolls.
- Unwinder - rewinder of the transfer ribbon with a mechanical guide allows for easy installation.
- Quick change of label printing heads, and automatic recognition of the type of head.
- Detection cell for paper adjustment to identify the start and end of the roll.
- J-Script programming easily integrated.
- Presence of different interfaces:

1 - SD memory card

2 - 2x master USB (barcode reader, USB key, USB Wi-Fi key, USB Bluetooth adaptor

3 - USB 2.0 Hi-Speed slave (PC connection)

4- 10/100 BASE-T Ethernet cable connection

5 - RS232C 1.200 at 230.400 bauds/8 bits

Intuitive use

- Easier to use thanks to a colour touch screen that replaces the old black and white LCD screen with keyboard of the MACH4 printer.

1 – Power on

2 – Status line: data flow, ribbon pre-alarm, USB/SD memory card connected, Bluetooth, clock, etc.

3 – Status messages: pause, ready, number of labels printed, pre-separation position

4 – Peripherals: cutter, printing mode

5 – Operation

Menu Repetition of the last label Pause/restart printing

Advance the labelCancel printing

- The thermal transfer label is created on your PC using the Cablabel Lite labelling software (supplied with the printer), transferred to the printer using the USB cable, then printed in the required quantity.
- The variable data can come from an external file or a barcode reader.

This professional thermal transfer printer is delivered with its power cable, user manual, drivers (Windows 2000/2003/XP/Vista/MacOSX/Linux), the Cablabel Lite software and service manual on Cdrom.

SBE advises you: How best to choose your label printer?

Different models of the MACH4S printer

The MACH4S printer is available in three models

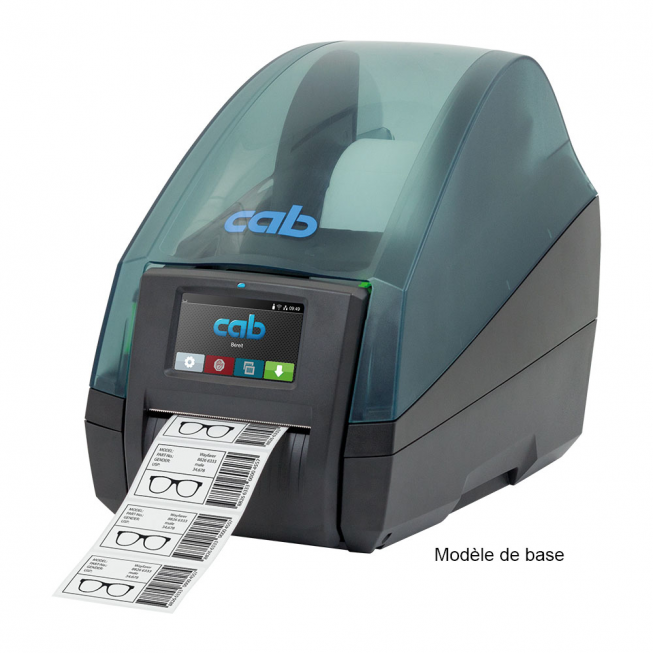

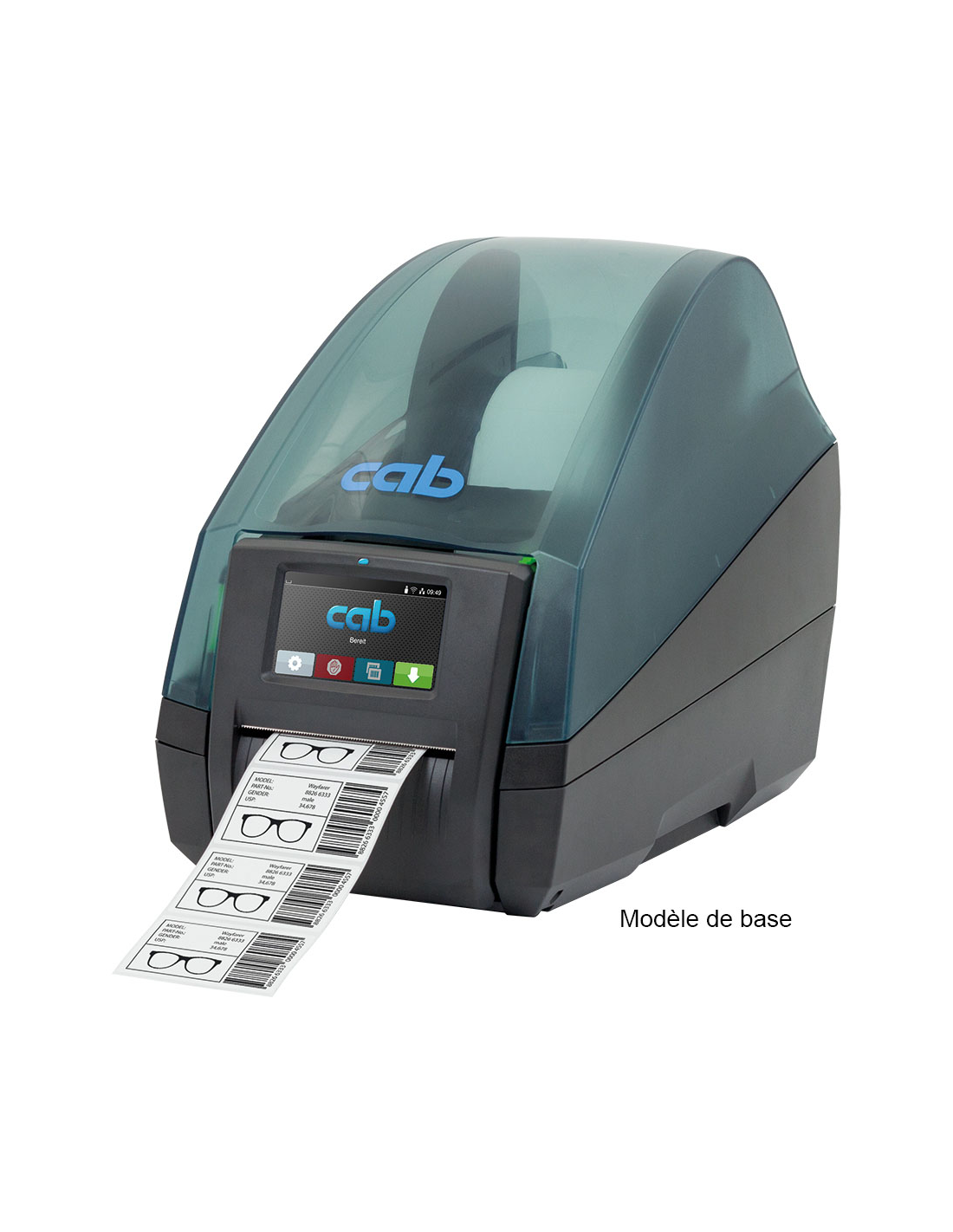

Basic model: Label printing on all materials in rolls or fanfold

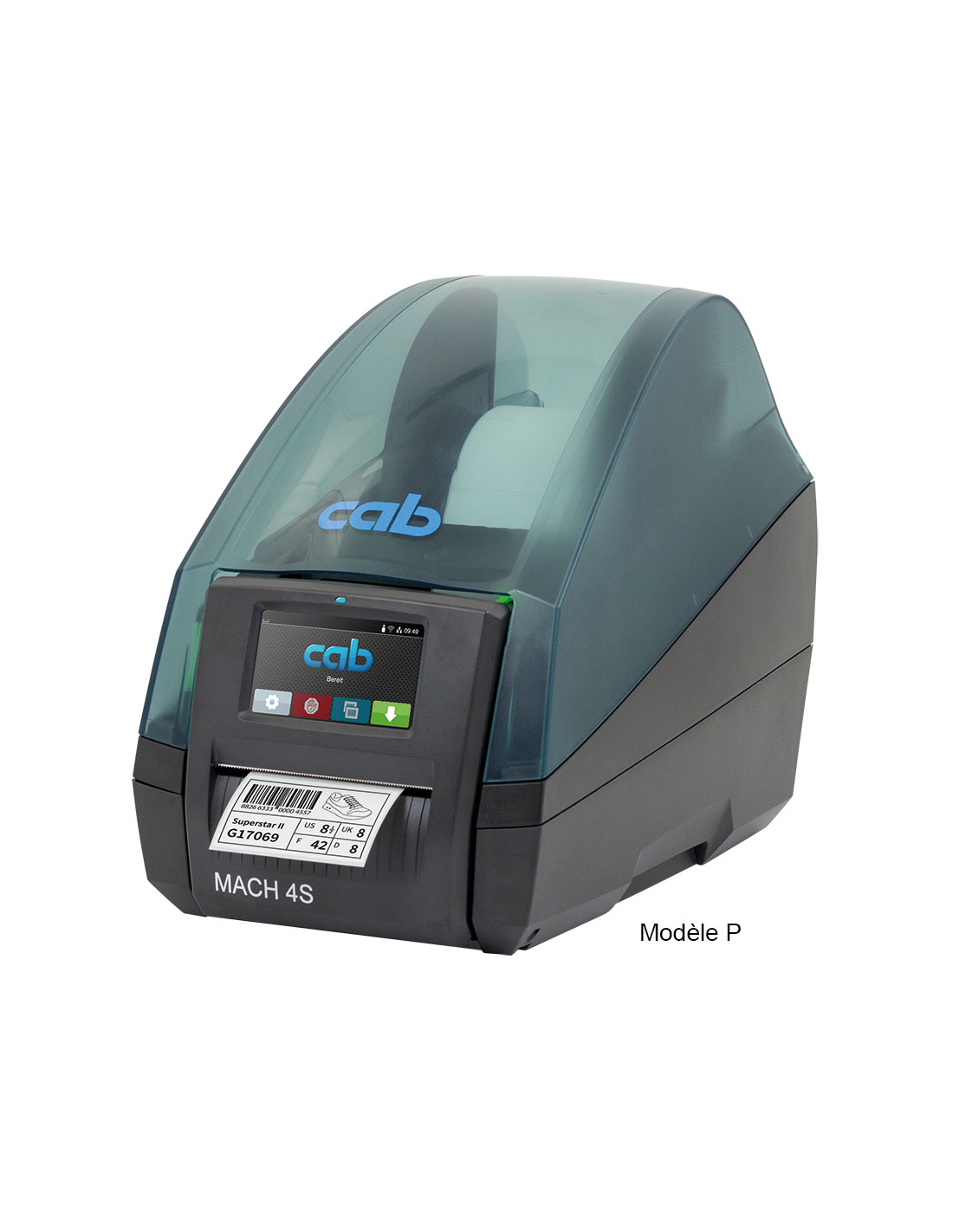

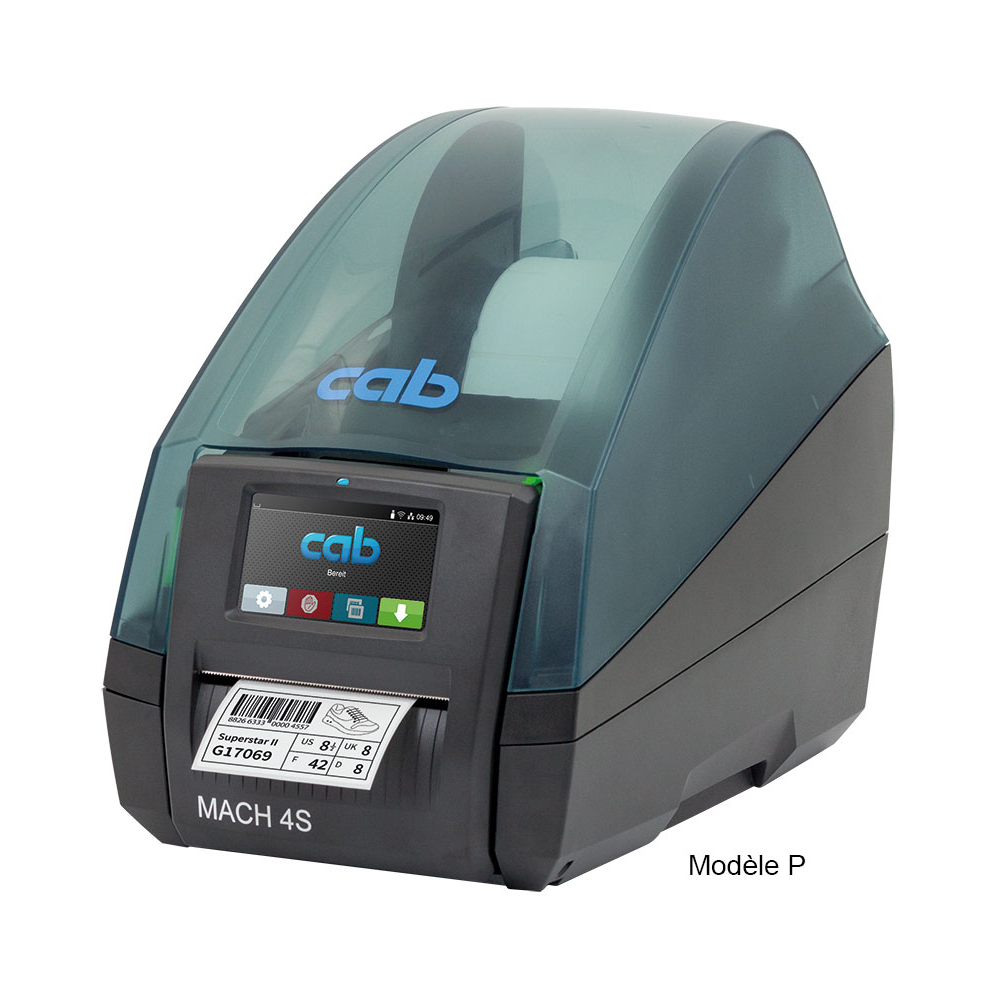

P or MP model: The labels can be pre-separated. The custom label is detached from the support by the pre-separation cutting edge.

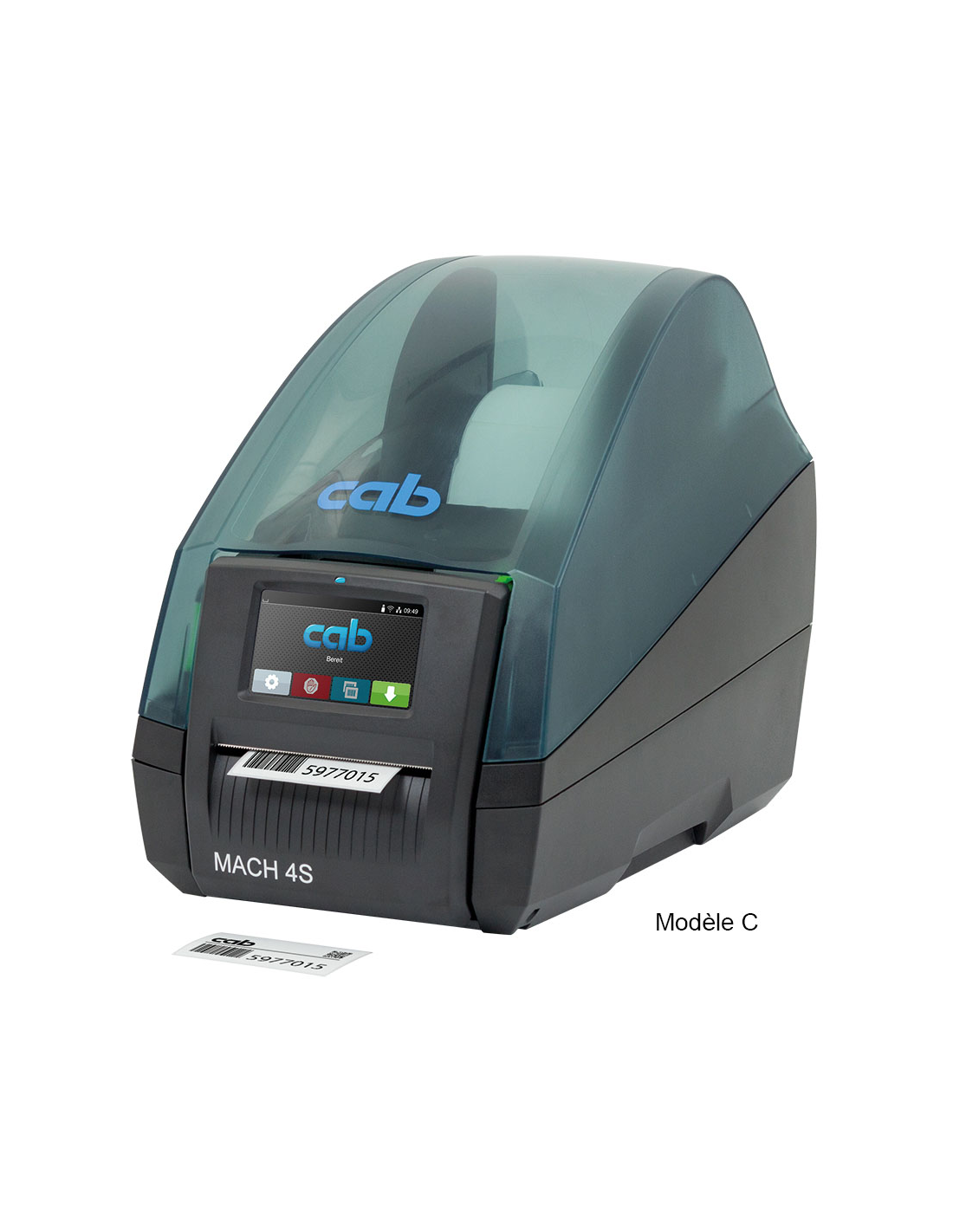

Model C: Presence of a cutter (blade installed at the label exit)by which the labels can be pre-cut as from a height of 12 mm. The result will be a pile of printed labels.

OPTIONS AND ACCESSORIES

Transfer ribbon holder: this accessory allows ribbons to be prepared in advance on additional holders for a quicker change of ribbon.

Label winder: the label winder allows for a quicker change of continuous label material by preparing rolls in advance on an additional winder.

ER4 external rewinder: this automatic electric rewinder allows for production of a clean roll of labels after printing. The maximum diameter of the roll is 210 mm, while that of the mandrel is between 40 and 76 mm.

RS232C cable: 3 metres long

Memory card: label templates designed using the Cablabel S3 software can be saved on a memory card or a USB key. This backup memory can be connected to the printer which can then operate on its own, without being connected to the host system.

List of barcodes available for the Cablabel S3 Lite and Cablabel S3 Pro versions.

  MACH 4.3S MACH 4.3S MACH 4S MACH 4S
Consumables guidance Centered
Resolution 203 300 300 600
Printing speed up to (mm/s) 250 250 250 150
Pinting width up to (mm/s) 104 108,4 105,7 105,7
Printing area Material - centred
                                       Labels
Label width 6-116 mm
Roller, coil : outer diameter jusqu'à 205 mm
Mandrel Diameter 38,1 -100 mm
                                       Transfer Ribbon
Roller Diameter 72 mm
Mandrel Diameter (mm) 25,4
Lenght (m) 360
                                    Printer Dimensions/Weight
W x H x D (mm) 317x240x435
Weight (kg) 6

IMP-TT-M43S-203

Data sheet

Unity
L'imprimante
Packaging
à l'unité
Guarantee
1 an
Code catalogue
F1063
Weight
6
Vitesse d'impression
Jusqu'à 250 mm/s
Largeur d'impression
Jusqu'à 108,4 mm
Résolution
De 203 dpi à 600 dpi
Zone d'impression
Centré sur la matière

Download

Imprimante TTH CAB MACH 4S (FR)

Mode d'emploi Imprimante TTH CAB MACH 4S

Download (2.57M)

No customer reviews for the moment.


Modèle imprimante MACH 4.3S : modèle de base Ref. IMP-TT-M43S-203

Quantités Prix € HT
203dpi
Prix € HT
300dpi
1 1616 € 1747 €


Modèle imprimante MACH 4.3S : modèle P Ref. IMP-TT-M43-203P

Quantités Prix € HT
203dpi
Prix € HT
300dpi
1 1694 € 1825 €


Modèle imprimante MACH 4.3S : modèle C Ref. IMP-TT-M43-203C

Quantités Prix € HT
203dpi
Prix € HT
300dpi
1 2085 € 2216 €


Modèle imprimante MACH 4S : modèle de base Ref. IMP-TT-M4S-300

Quantités Prix € HT
300dpi
Prix € HT
600dpi
1 1694 € 2033 €


Modèle imprimante MACH 4S : modèle P Ref. IMP-TT-M4S-300P

Quantités Prix € HT
300dpi
Prix € HT
600dpi
1 1773 € 2112 €


Modèle imprimante MACH 4S : modèle C Ref. IMP-TT-M4S-300C

Quantités Prix € HT
300dpi
Prix € HT
600dpi
1 2164 € 2503 €
