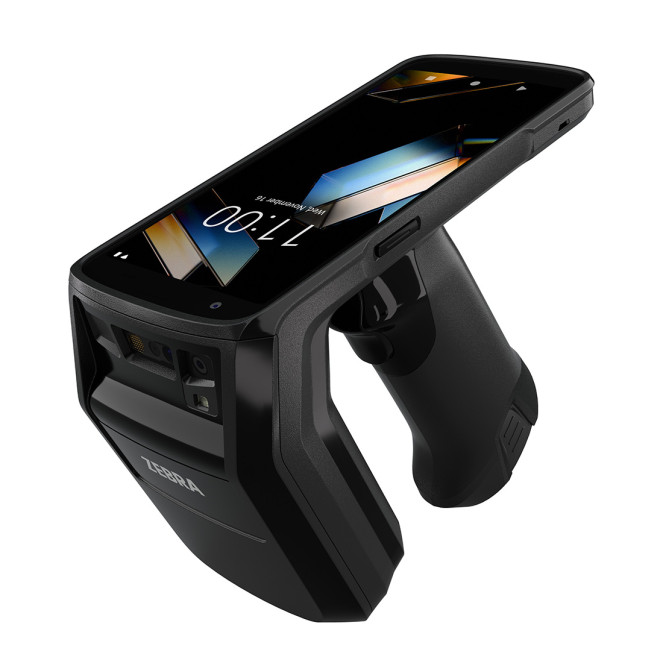

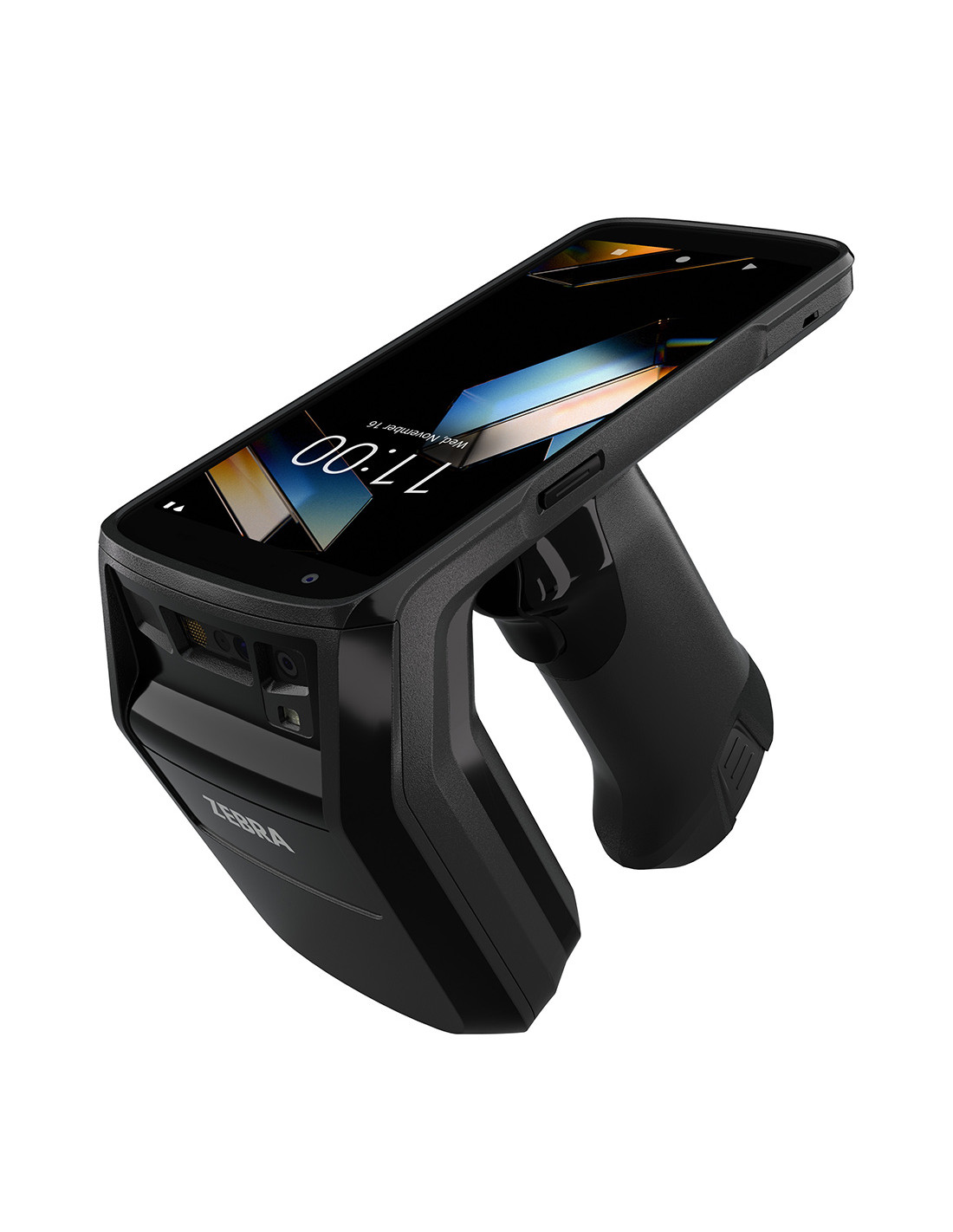

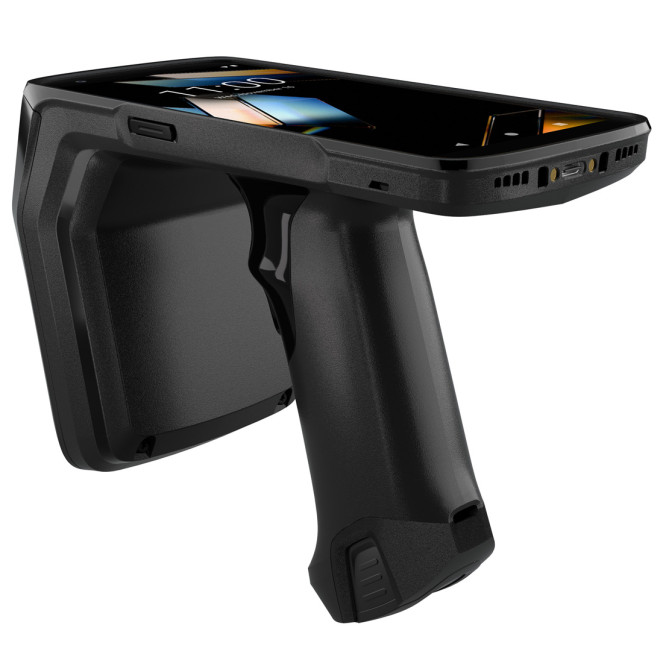

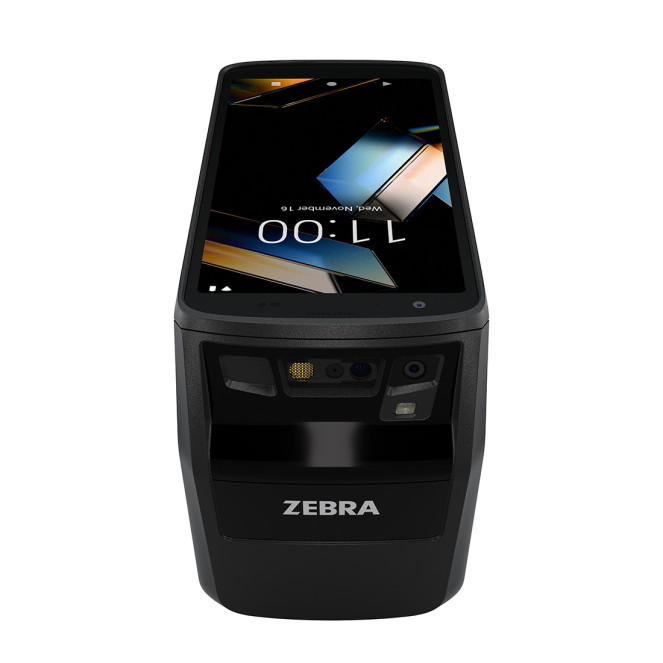

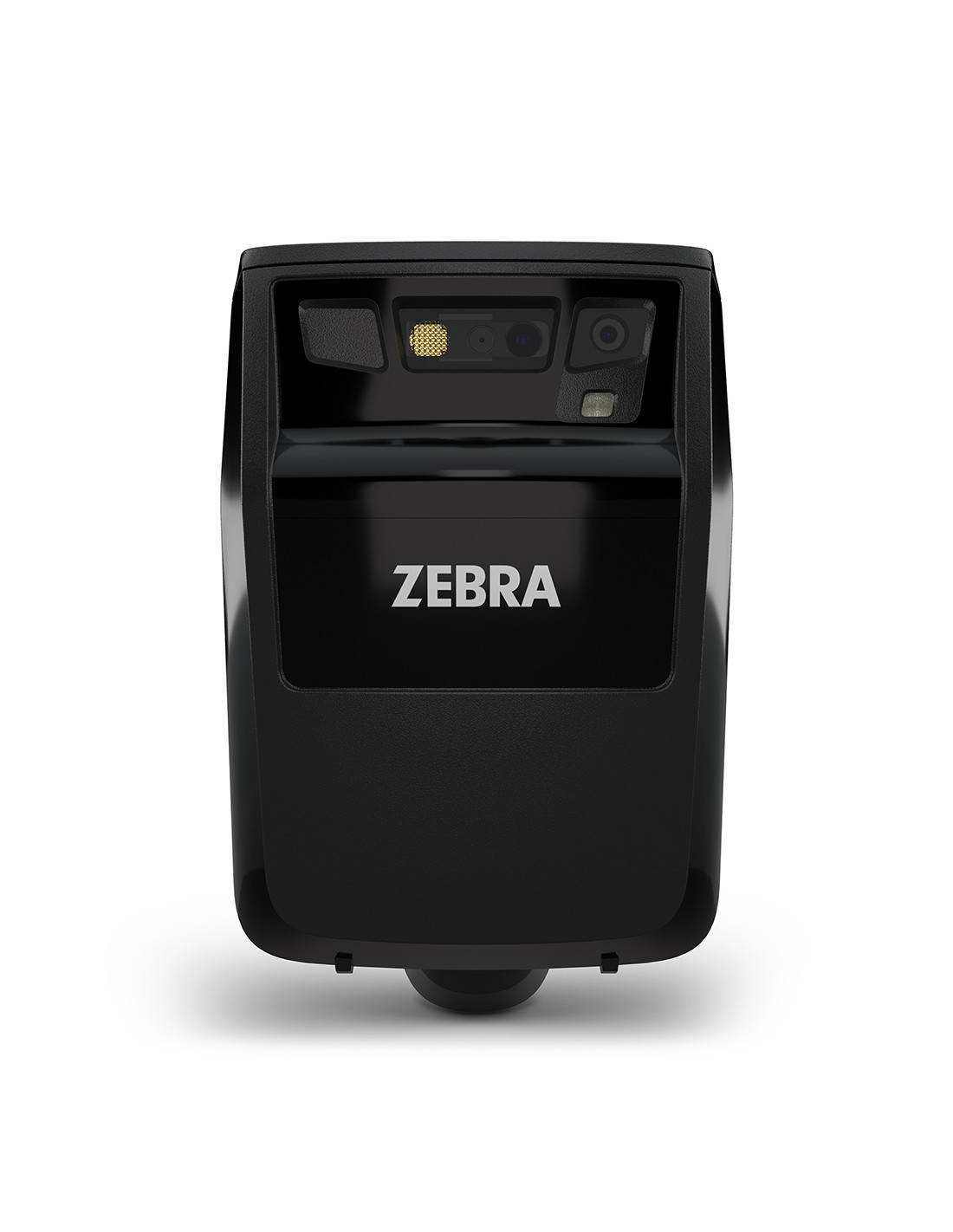

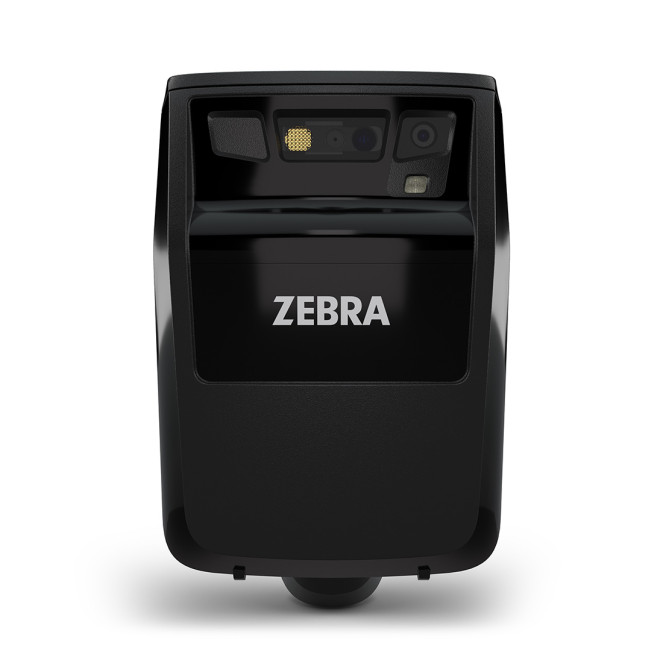

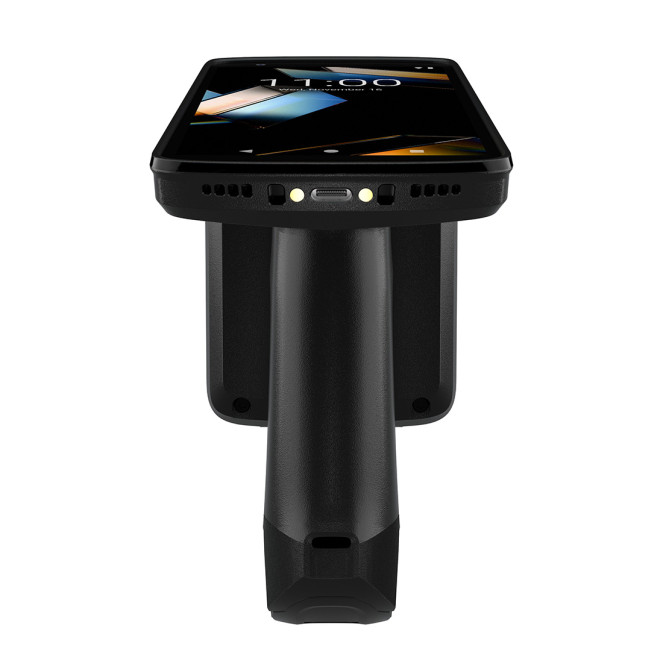

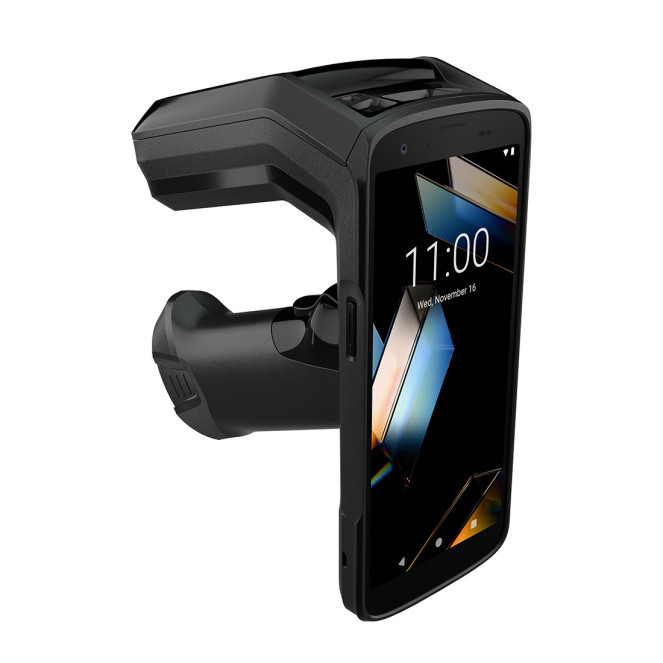

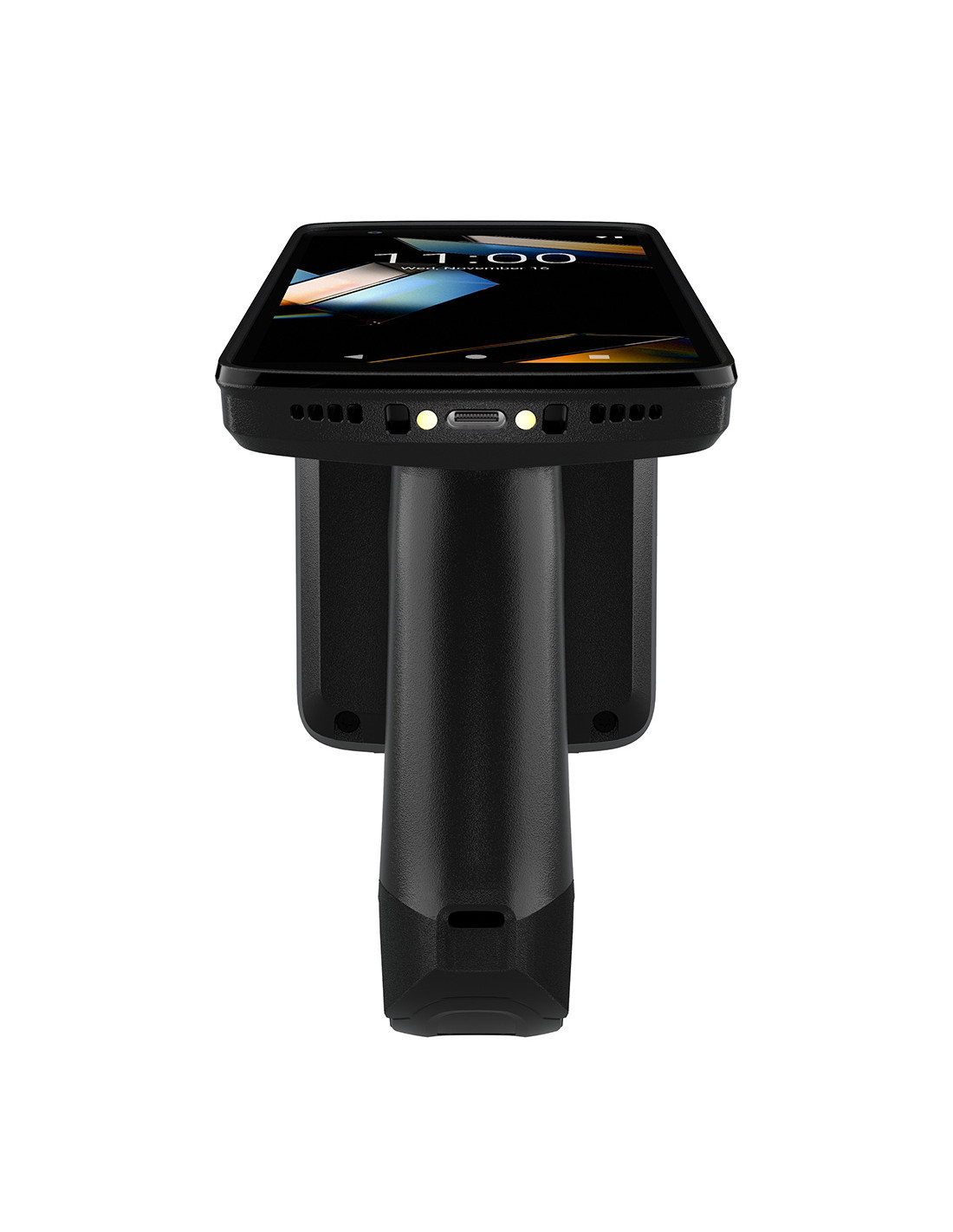

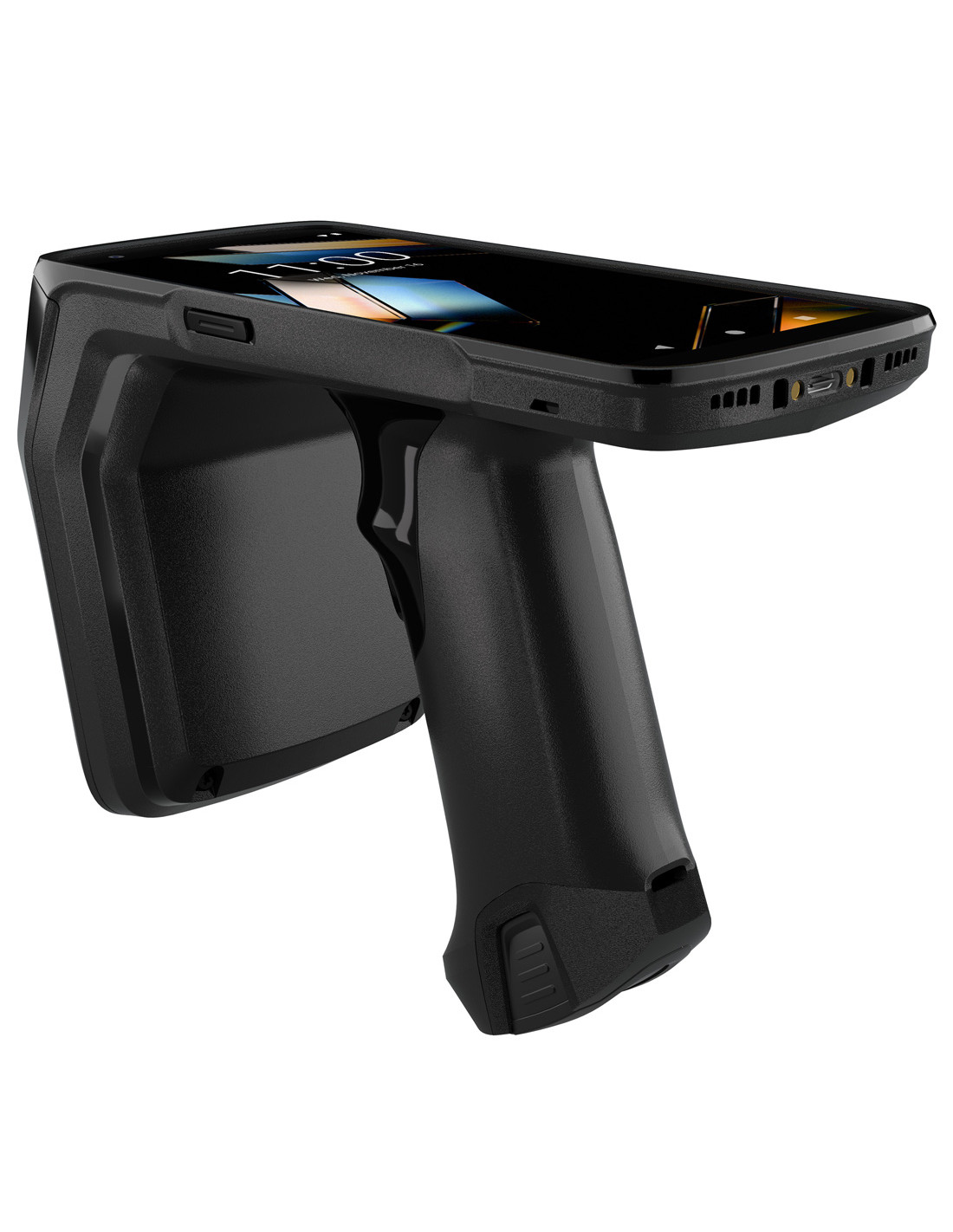

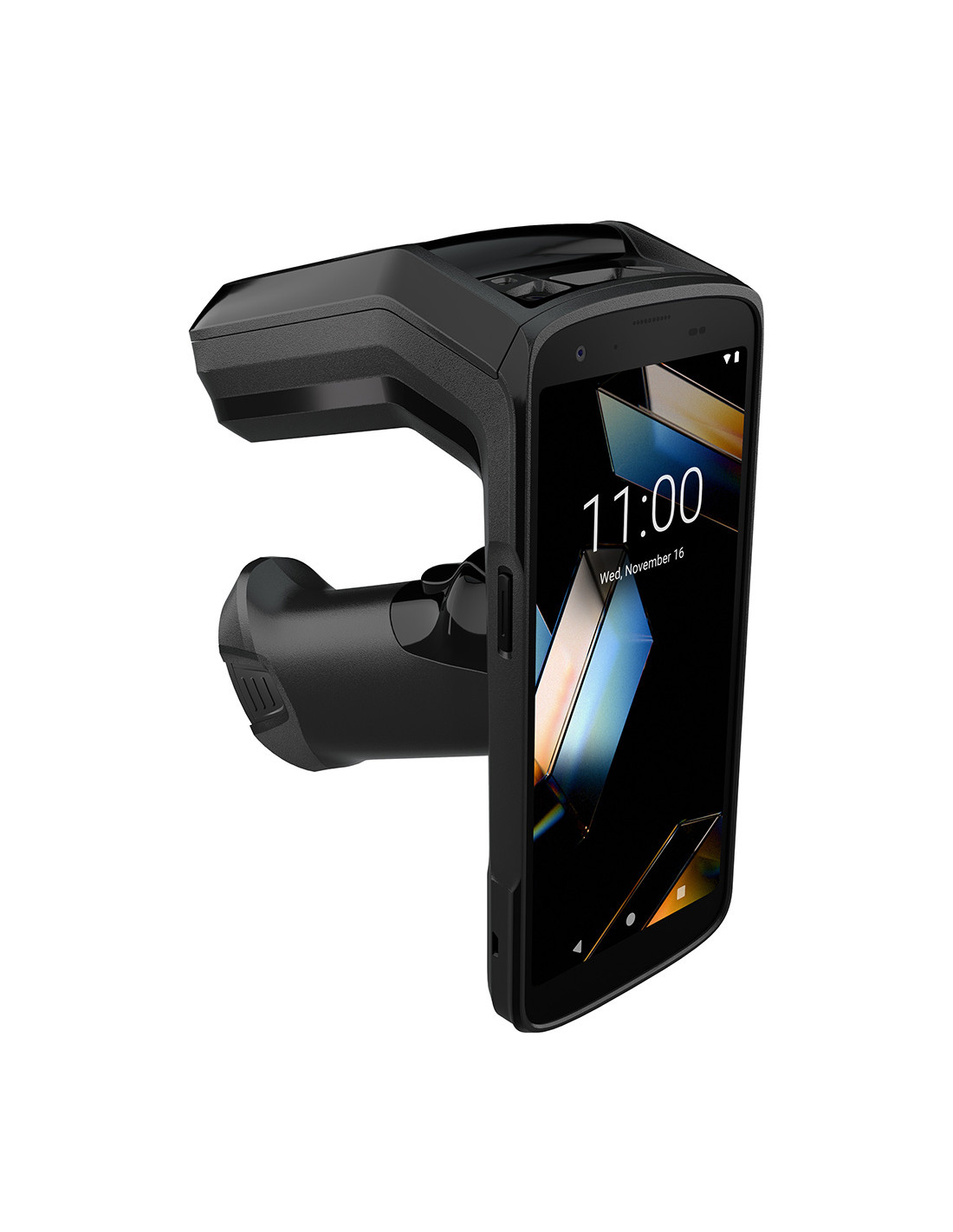

TC22R Integrated RFID Scanner: All-in-One UHF RFID Terminal for Inventory and Traceability

The TC22R integrated RFID scanner from Zebra is a professional Android RFID mobile terminal designed for RFID inventory operations, asset tracking, and stock management. It combines in a single device an integrated UHF RFID reader, a 1D/2D barcode scanner, and the performance of a rugged professional smartphone.

This all-in-one RFID terminal integrates easily with asset management and equipment tracking software, including SAM – SBE Asset Manager, ensuring reliable RFID tag traceability in field environments.

Watch the video to explore the features of the Zebra TC22R :

Zebra TC22R Integrated UHF RFID Reader: Performance, Mobility, and Professional Ruggedness

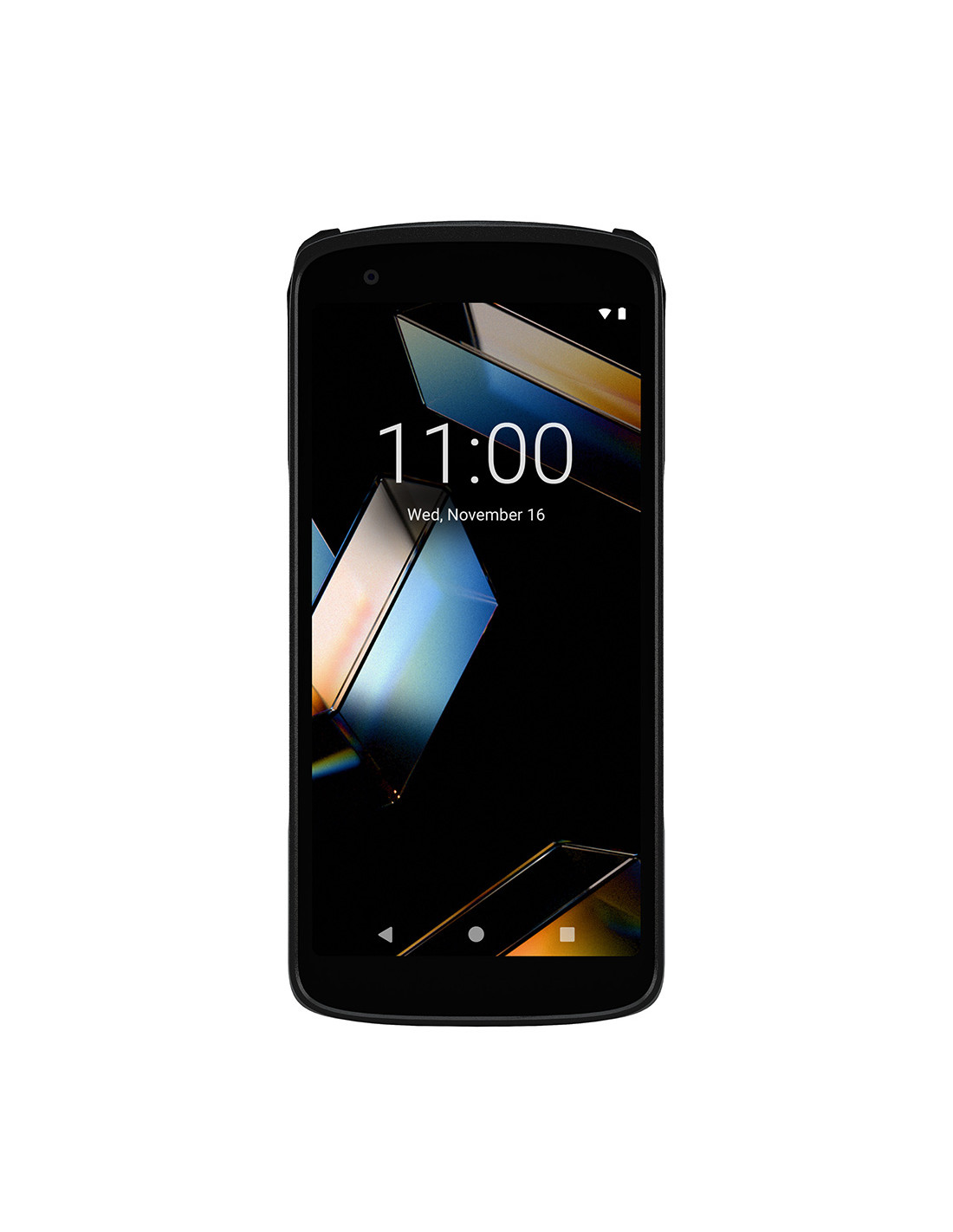

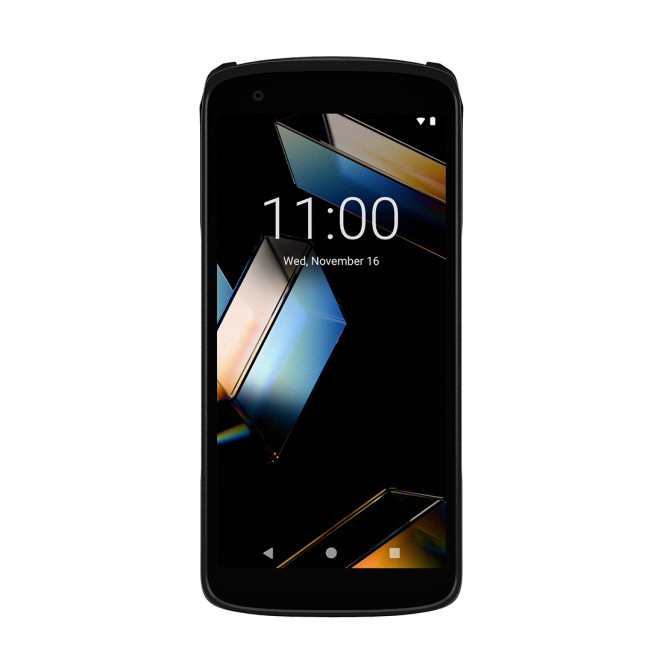

The Zebra TC22R UHF RFID reader combines industrial-grade durability with mobile ergonomics. Its 6-inch Full HD+ touchscreen, protected by Gorilla Glass, provides excellent readability. Certified IP65, this professional RFID terminal is resistant to dust and moisture.

Its connectivity options—Wi-Fi 6 / 6E, Bluetooth 5.3, and cellular networks—ensure fast and secure data exchanges, essential for UHF RFID traceability projects and enterprise mobility.

Versatile RFID Mobile Terminal for Inventory, Stock Management, and Asset Tracking

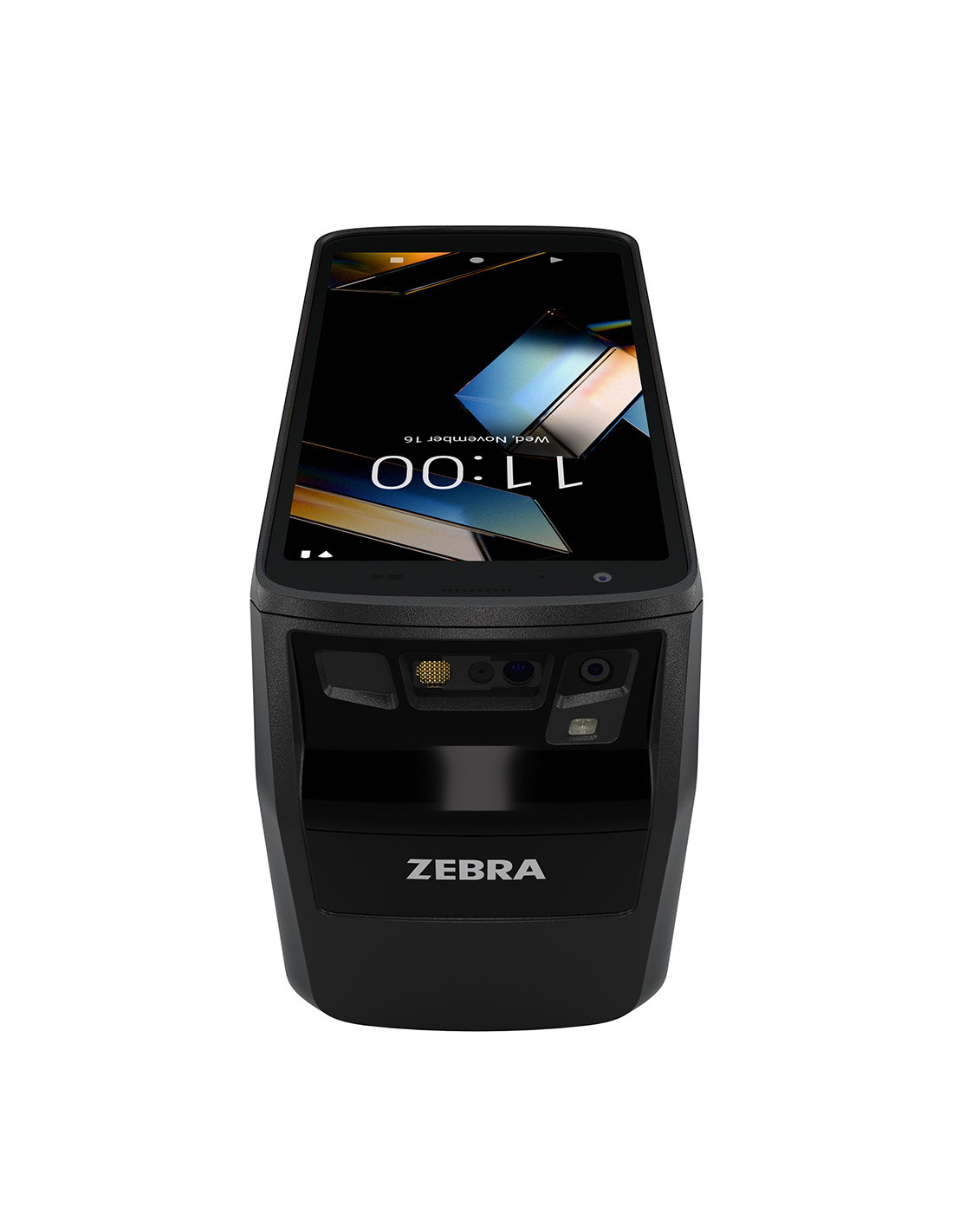

Thanks to its integrated UHF RFID reader, the TC22R enables fast reading of UHF RFID and NFC tags without the need for an external reader. It also supports 1D/2D barcodes, QR codes, and NFC, making it a multifunction RFID mobility terminal.

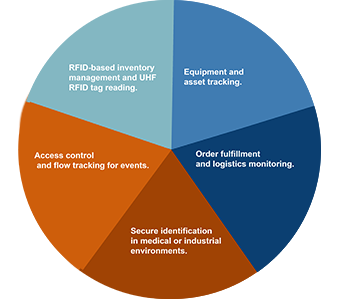

TC22R RFID Terminal Use Cases:

• RFID inventory management and UHF RFID tag reading.
• Equipment and fixed asset tracking.
• Order picking and logistics tracking.
• Secure identification in medical or industrial environments.
• Access control and flow monitoring for events.

RFID Tag, RFID Software Compatibility, and SBE Direct Ecosystem

The Zebra TC22R RFID terminal is compatible with the UHF RFID and NFC tags we offer. When paired with the SAM – SBE Asset Manager software, it becomes a central tool for RFID asset management.

It is also compatible with RFID labeling and printing software such as BarTender, Loftware Designer Pro, and Cablabel S3 Pro, ensuring full continuity betweenRFID tag creation, printing, and reading.

Technical Performance and Field Autonomy of the Zebra TC22R Android RFID Terminal

This professional Android RFID terminal features a six-core 2.1 GHz processor, 4 GB of RAM, and 64 GB of Flash memory, ensuring smooth operation of business applications.

Its removable 7,000 mAh PowerPrecision+ battery provides autonomy suitable for full days of intensive RFID inventory.

The integrated UHF RFID reader can read up to 1,300 tags per second, with a range of up to 12 meters, depending on the environment and tag type. It supports EPC Class 1 Gen 2 and Gen 2v2 standards.

A Professional RFID Scanner with Intelligent Connectivity

Bluetooth Low Energy (BLE) connectivity enables the TC22R to efficiently interact with label printers, charging stations, and Zebra devices while optimizing power consumption.

Combined with Wi-Fi 6 / 6E and cellular networks, this connectivity ensures seamless integration of the RFID terminal into existing information systems.

What Are the Differences Between the Zebra TC22 + RFD40 and the TC22R?

The Zebra TC22 terminal alone is a mobility device primarily designed for reading barcodes, QR codes, and NFC, without integrated long-range UHF RFID.

When paired with an external Zebra RFD40 RFID reader, it becomes a solution suitable for RFID projects requiring very long read ranges or high volumes.

The Zebra TC22R integrated RFID scanner, on the other hand, combines in a single device a TC22 Android terminal and an integrated UHF RFID reader, ready for use. This all-in-one approach reduces hardware, simplifies deployment, and optimizes daily RFID inventory and asset tracking operations.

This all-in-one solution also provides a more cost-effective alternative to combining a TC22 terminal with an external RFD40 RFID reader.

To fully understand the technical and functional differences between the two models, read our comprehensive article: Zebra TC22 or TC22R: Which RFID mobile computer should you choose?

Accessories, Charging, and Services for the Zebra TC22R RFID Terminal

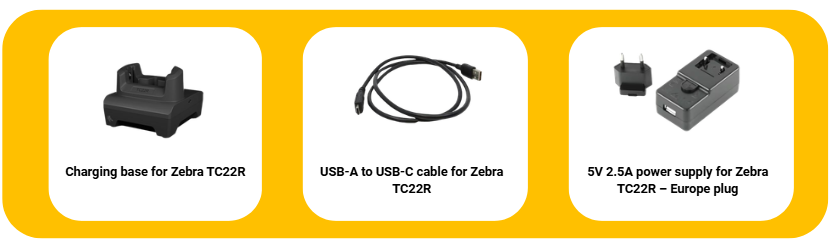

The Zebra TC22R RFID terminal is supplied with its battery, without a charging station. Charging cradles, multi-slot stations, USB-C cables, and additional batteries are available as options for multi-user environments.

Internal storage and microSD memory expansion

The Zebra TC22R RFID terminal features 64 GB of internal memory, allowing storage of business applications, inventory databases, and files related to field operations.

It also includes a microSD memory card slot, accessible on the side of the device. This storage expansion enables:

• file exchange and transfer.
• additional data storage.
• and, depending on the configuration, Android system updates or upgrades.

This storage flexibility enhances the adaptability of the TC22R to demanding professional environments and evolving RFID projects.

Zebra Services to Secure the Use of the TC22R RFID Terminal

The Zebra TC22R RFID terminal is designed for field operations requiring reliability and availability. To support professional use, Zebra offers multiple service and warranty levels, allowing coverage, repair times, and support methods to be adapted to operational needs.

* Plans must be purchased at the time of terminal purchase

** Device Diagnostic Tool (DDT): Zebra tool allowing instant testing of the terminal’s hardware components and operational status
