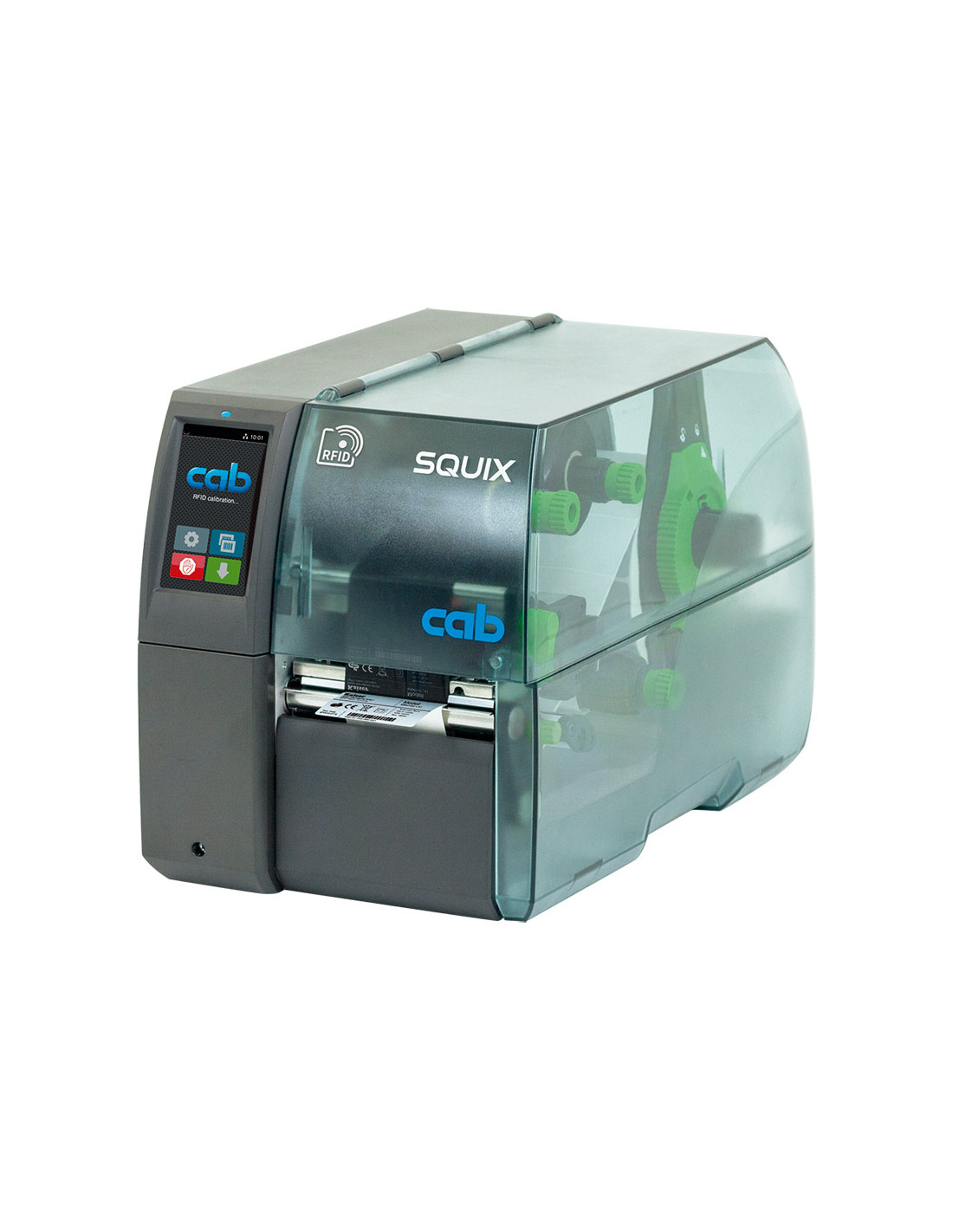

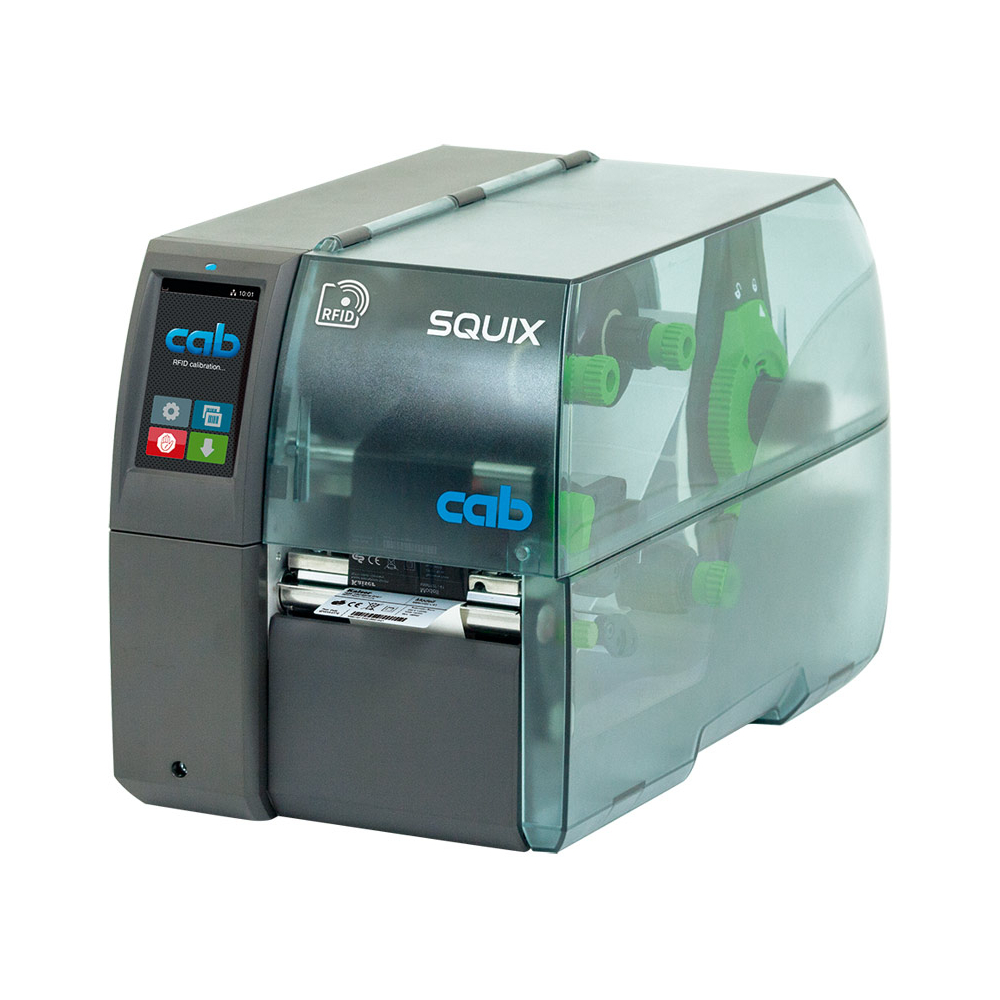

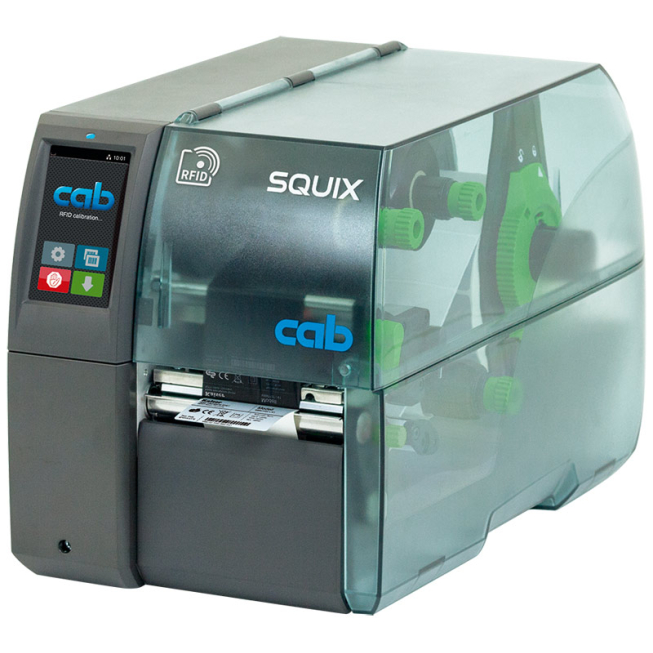

With the SQUIX 4 RFID UHF thermal transfer label printer, you can print and encode smart labels on your own. These labels can contain a logo, text, variable barcode, and an RFID chip encoded according to your needs — all with outstanding industrial-grade print quality.
Watch the video to discover more about the Cab SQUIX RFID UHF printer
CAB RFID Printer: Excellence for smart, reliable and high-performance labels
The CAB SQUIX 4 RFID printers feature a UHF RFID module that allows simultaneous printing and encoding of smart labels. Built for industrial environments, these printers ensure durable, readable, and traceable markings.
Three UHF RFID modules are available: for standard tags, on-metal tags, and high-sensitivity tags. A built-in calibration system ensures optimal read/write quality for each use.
Compact and robust, the SQUIX 4 RFID printer measures 252 x 288 x 520 mm (W x H x D) and weighs approximately 12 kg, making it easy to integrate on industrial workstations or tables.
Thanks to extended compatibility and support for a wide range of materials, these printers deliver thermal printing perfectly aligned with your traceability and logistics challenges.
This printer is compatible with a broad selection of RFID labels tested and certified by CAB, including models from Identytag, Confidex, Avery Dennison, and Omni-ID. For specific needs, CAB offers custom support in partnership with qualified providers.
Industrial Applications
The SQUIX 4 RFID is widely used across logistics, manufacturing, asset tracking, healthcare, aerospace, and automotive industries. It ensures real-time traceability, asset monitoring, and secure process tracking via UHF RFID technology.
Software Compatibility: Full control with Cablabel S3 Pro
The CAB SQUIX 4 RFID printer is fully compatible with Cablabel S3 Pro software, designed to unlock the printer’s full potential for RFID encoding. This professional tool enables advanced label design, dynamic data integration, barcode management, and full programming of RFID chips (EPC, TID, User Memory, memory lock, etc.).
A free version, Cablabel S3 Lite, comes with each printer. It’s ideal for basic printing tasks, but does not support RFID functions. To access UHF RFID features, the Pro version is required.
Thanks to this advanced compatibility, the SQUIX 4 RFID can operate in standalone mode, connect to databases, or be integrated into complex industrial systems. The software also includes modules such as the Database Connector for automated printing from external data sources and advanced network-based print control.
Choosing Cablabel S3 Pro with your CAB printer ensures a perfect integration between hardware and software for reliable, secure, and scalable traceability.
Available CAB SQUIX 4 RFID Models
Model
Resolution
Max speed
Print width
Special feature
SQUIX 4/300M RFID
300 dpi
300 mm/s
105.7 mm
Standard model with centered media guidance
SQUIX 4/600M RFID
600 dpi
150 mm/s
105.7 mm
High resolution for small RFID labels
SQUIX 4/300MP RFID
300 dpi
300 mm/s
105.7 mm
Centered guidance + internal rewinder for pre-peel
SQUIX 4/600MP RFID
600 dpi
150 mm/s
105.7 mm
High precision + automatic pre-peel
The CAB SQUIX 4 RFID is more than just a printer: it’s a complete RFID UHF printing and encoding station, built for performance, precision, and asset traceability.
IMP-TT-SRFID-300
Data sheet
Print speed
SQUIX RFID UHF (300 dpi): 300 mm/s – SQUIX RFID UHF (600 dpi): 150 mm/s
