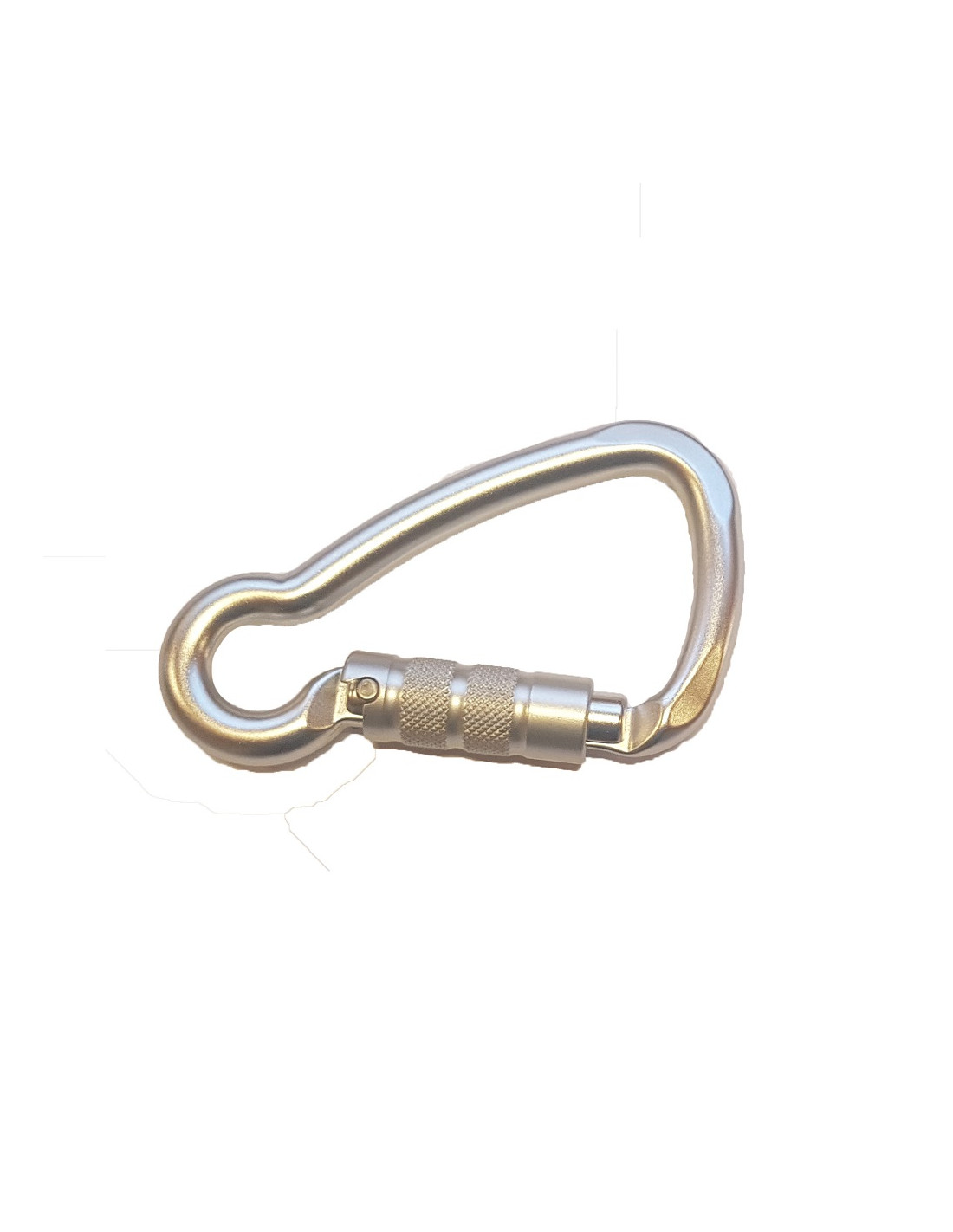

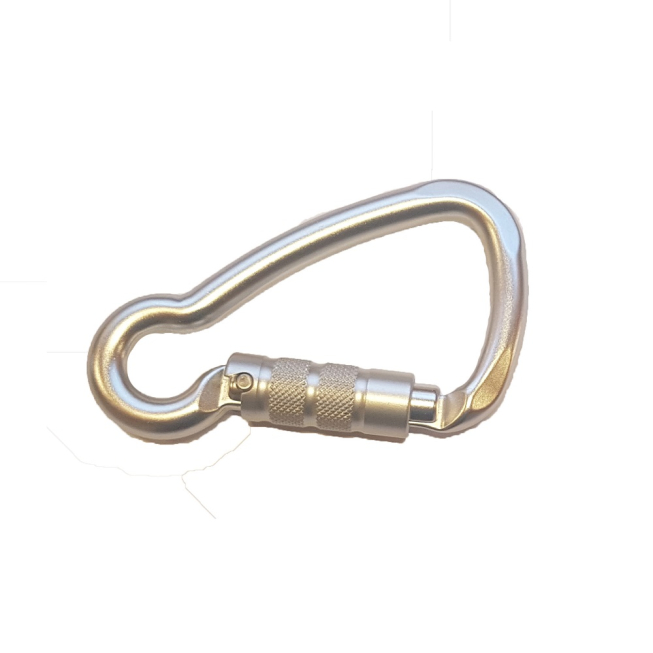

Twist lock carabiner 20 mm - 87 g, automatic rotating lock

From €29.00 to €36.00 excl. VAT (?)

Individually

Automatic rotating lock: the sleeve returns to the closed position on its own, with no step to forget
20 mm gate: standard rings, harness D-rings, lanyard end loops
87 g stated by the manufacturer for that gate width — 5 g more than the screw-sleeve version
EN 362 compliant, connectors for personal fall-protection equipment
Sold individually

Prices

Quantity (Individually)

Total : €172.80 excl. VAT

The minimum purchase order quantity for the product is 4.

Delivery

Guarantees

📅 Restocking
Shipped within 15 days

At equal gate width, an automatic carabiner always weighs slightly more than a screw-sleeve one: the difference is the mechanism. This anti-fall equipment connector offers a 20 mm gate for 87 g as stated by the manufacturer, with a rotating lock that closes without any intervention. EN 362 compliant.

Twist lock carabiner 20 mm: the key points

→ Automatic rotating lock: the sleeve returns to the closed position on its own, with no step to forget.
→ 20 mm gate: standard rings, harness D-rings, lanyard end loops.
→ 87 g stated by the manufacturer for that gate width, 5 g more than the screw-sleeve version.
→ EN 362 compliant, connectors for personal fall-protection equipment.
→ Sold individually.

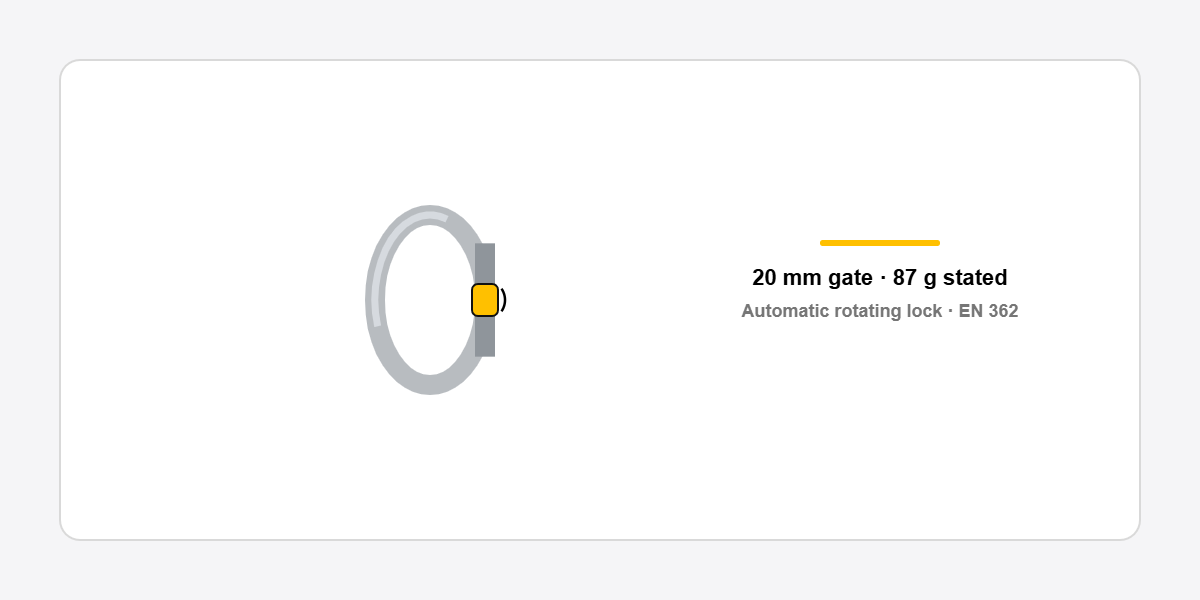

20 mm for 87 g: what the mechanism weighs

The figure that sets this connector apart cannot be read on its own, it is read as a gap. Our carabiner with 20 mm sleeve offers exactly the same gate width for a stated 82 g. This reference weighs 87. Those 5 g buy no extra capacity: they buy the mechanism. On a connector, weight pays for material, geometry or automation, here automation.

The ratio also reads downwards. The steel oval carabiner drops to a 16 mm gate and the wide-gate carabiner 52 mm goes far beyond, but neither holds this compromise: a gate that covers common attachment points, under 90 g. We publish that 87 g exactly as the manufacturer states it, not as an SBE measurement.

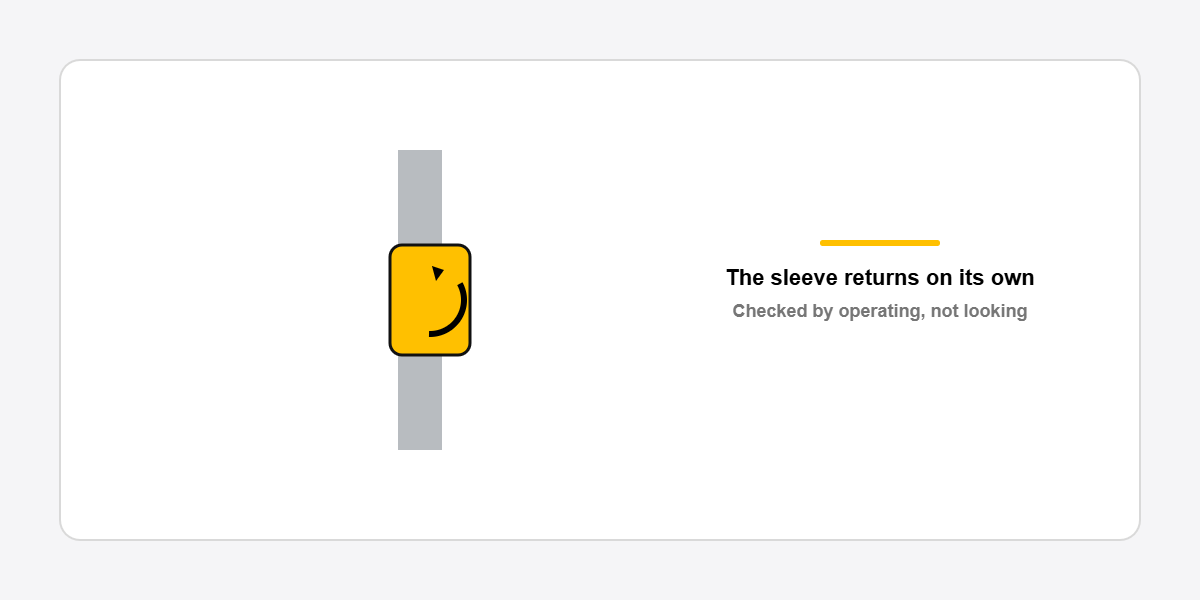

The mechanism that weighs 5 g is checked differently

An automatic lock changes the nature of the check. On a screw sleeve, the state of the connector can be read. On a twist lock there is nothing to read: the sleeve has always returned to the closed position. The check becomes an action: operate it, release it, and confirm the sleeve returns to the locked position on its own and the gate no longer opens.

That action is not optional. Dust, paint overspray, ice, deformation after an impact: none visibly stops the sleeve completing its travel. The rest of the regime is that of any fall-protection connector: annual inspection by a competent person, recorded, and withdrawal after any fall. It applies to the fall arrest harness with 2 attachment points and the double strap energy absorbing lanyard it connects to.

Twist lock carabiner 20 mm FAQ

Twist lock or screw sleeve, at equal gate width?

Both lock in accordance with EN 362; the difference is the number of steps to remember. A twist lock closes on its own, which counts when you reconnect several times per shift with gloves on. A screw sleeve can be read at a glance. The twist lock costs 5 g more for the same 20 mm gate.

Where does the 87 g figure come from, and is it reliable?

It comes from the manufacturer's documentation recorded in our database, and we publish it on that basis only. If the exact mass drives your decision, ask for the manufacturer's data sheet.

Which anchor points suit a 20 mm gate?

The rated points of a fall-arrest system: standard rings, harness D-rings, lanyard end loops. It does not suit a thick support (a beam, a scaffold tube), which calls for a wide-gate connector. Measure the actual section of your anchor points before ordering.

How do you check an automatic lock before use?

By operating it, not by examining it. Open the gate, release it, and confirm the sleeve returns to the locked position by itself. If the travel is stiff or incomplete, the connector leaves service. This check comes on top of the annual inspection by a competent person.

Price: From €29.00 to €36.00 excl. VAT
Unit: Individually
Conditioning: Individually
Guarantee: 1 year
Certification: CE EN362

Brand SBE

Reference SP-EAC-69T

EAN13 8011818107586
