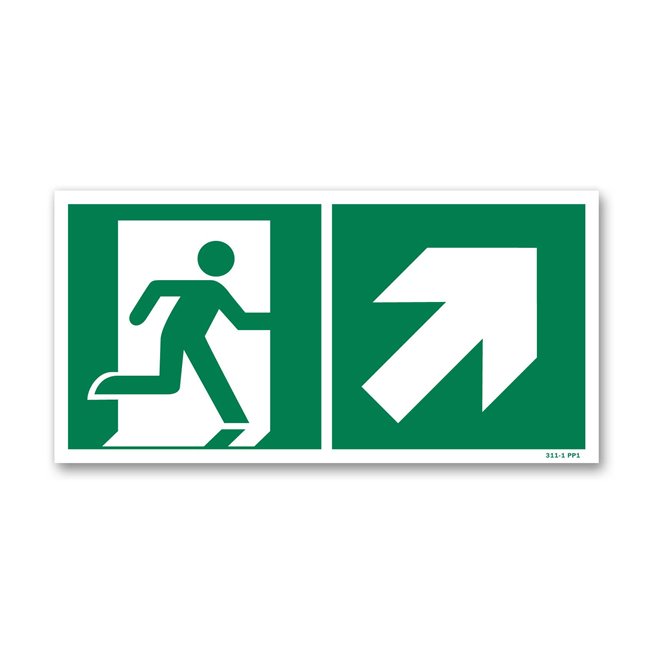

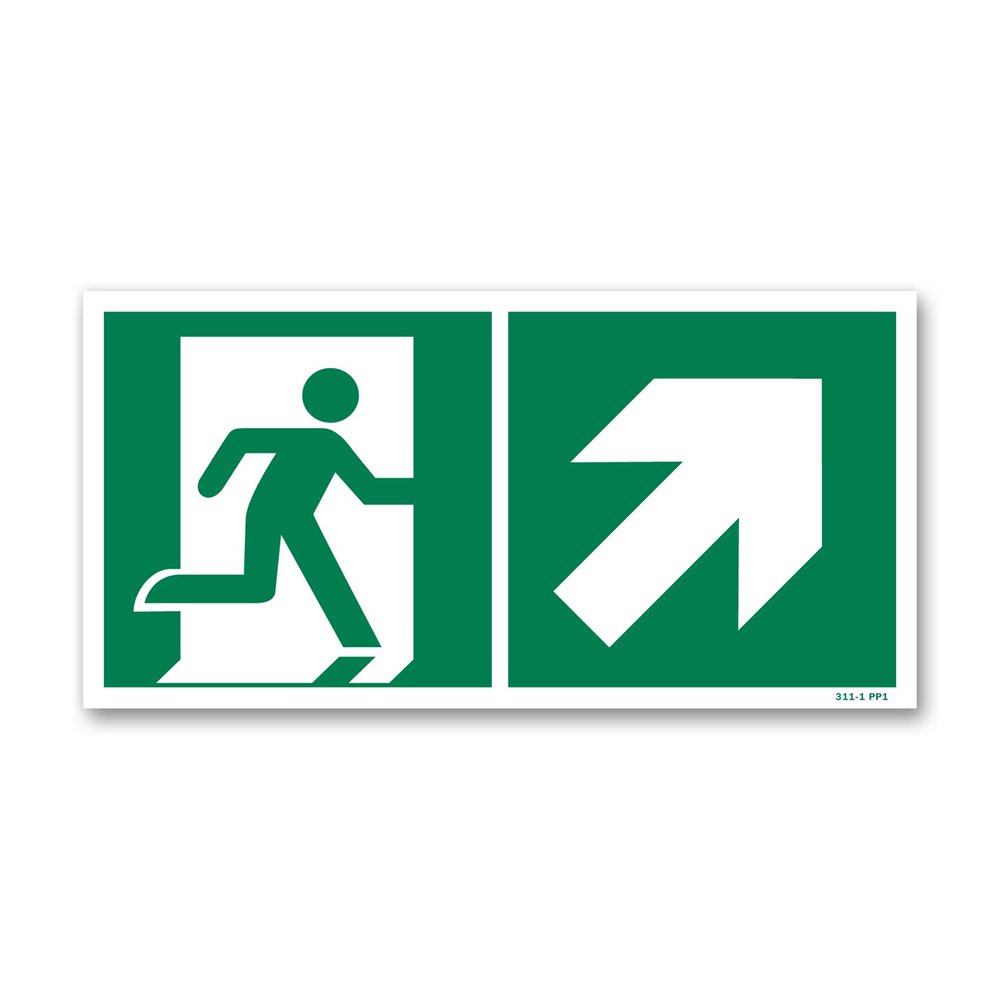

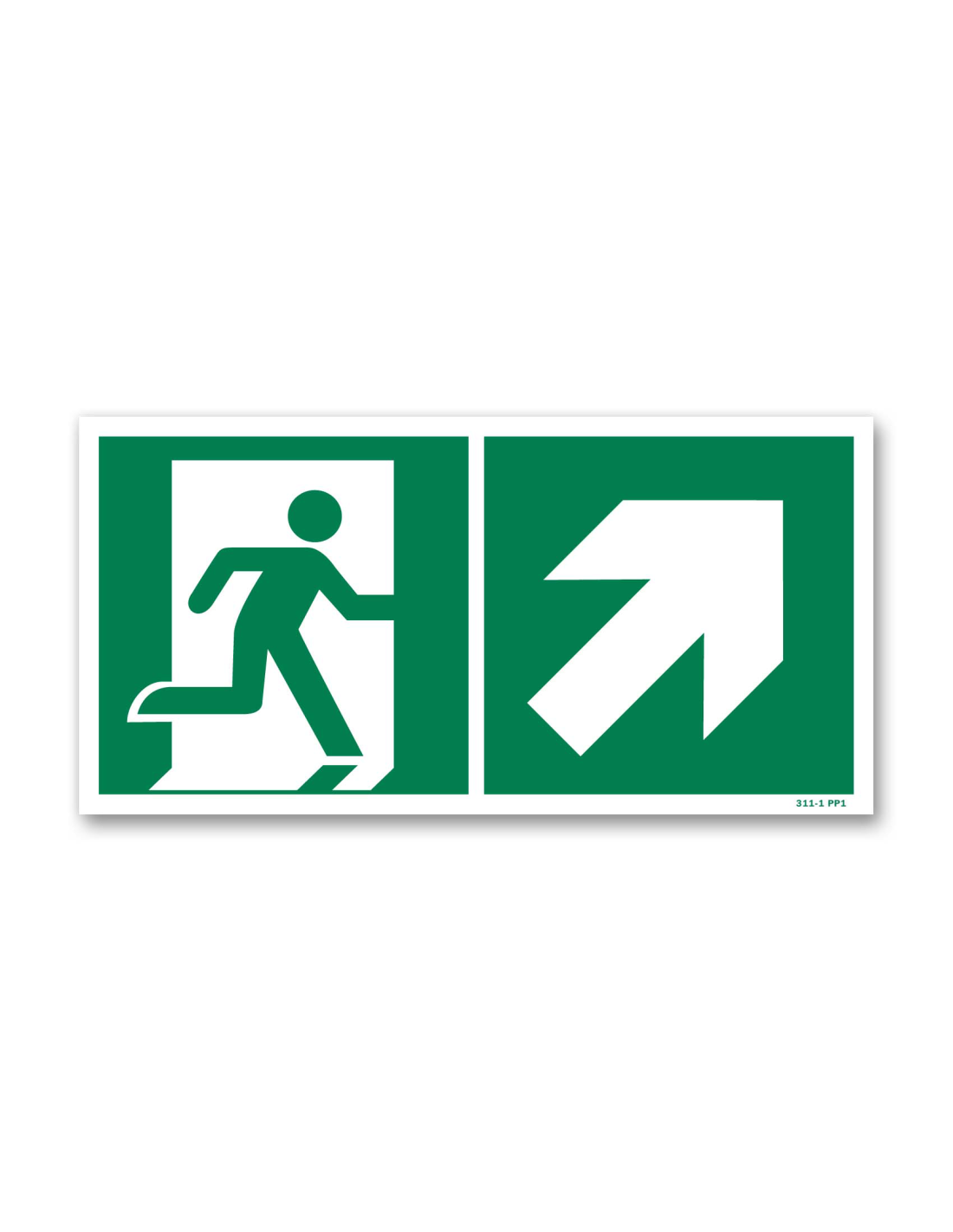

Panneau évacuation picto escalier droite montée photoluminescent

Right-up staircase photoluminescent sign - ISO 7010 evacuation

From €36.00 to €44.00 excl. VAT (?)

The panel

Glows without power
Stairs-up-right pictogram
1 mm PVC support
ISO 7010 compliant
Two sizes
Made to measure on request

Format

Quantity (The panel)

Total : €43.20 excl. VAT

Delivery

✔️ In stock
Shipped within 7 days

The right-up staircase photoluminescent sign marks an emergency exit taken by a staircase rising to the right. Its photoluminescent face keeps glowing once the lights go out - exactly when a stairwell becomes the trickiest point of an evacuation. The pictogram, on a standardised green ISO 7010 background, reads without a single word. 1 mm PVC support, two sizes, indoor as well as outdoor fitting.

What the right-up staircase photoluminescent sign shows

It rounds out the photoluminescent evacuation signs range with the marker for a staircase rising to the right.

→ Exit by a staircase - the pictogram directs to an exit set higher up.
→ Rising to the right - the flight goes up and to the right.
→ Green ISO 7010 background - the colour code for evacuation routes.
→ Photoluminescent face - it stays legible in the dark, with no power.
→ 1 mm PVC support - a rigid board that screws or bonds into place.
→ Two sizes - 300 × 100 mm and 600 × 200 mm depending on reading distance.

Marking a staircase that rises to the right

In a multi-storey building, some occupants evacuate upwards rather than down - from a basement, say, or when the emergency exit sits on a higher level.

This sign captures exactly that case: the flight that rises to the right. Fitted at the foot of the stairwell or on the landing, at eye level, it settles the hesitation between going up and going down - hesitation that costs dearly in smoke. Its instant reading comes from the standardised pictogram, the same across Europe.

Photoluminescence: staying visible when the light fails

What sets this sign apart is its surface: it stores the ambient light and releases it once the room goes dark, with no battery and no wiring. And the staircase is where lighting most often fails in an incident - a power cut, smoke masking the fixtures. The luminous green face then takes over and keeps the route visible for the length of the evacuation. It is passive safety, independent of the mains, complementing the standard signage rather than replacing it.

Four staircase pictograms: which to choose

The staircase varies along two axes: the direction (up or down) and the side (left or right). A guide:

Configuration	Sign
Up to the right (this model)	right-up staircase
Up to the left	left-up staircase
Exit in direct view	photoluminescent exit / emergency exit
Exit through a right-hand door	exit sign, right arrow

Two sizes cover most installations: 300 × 100 mm for a standard corridor or landing, 600 × 200 mm for reading at distance or overhead. If your evacuation plan calls for a specific format, made-to-measure production is available.

This signage belongs to a wider accessories and signage approach and the people security framework, and pairs with the non-photoluminescent evacuation signs (green). For the underlying logic of colors and symbols, see the ISO 7010 standard guide.

Questions fréquentes

What does this pictogram mean?

It marks an emergency exit taken by a staircase that rises to the right. The symbol and green background follow the ISO 7010 standard.

Does it need power or wiring?

No. The surface is photoluminescent: it recharges from the room lighting and then glows in the dark, with no electricity and no battery.

Where should it go in a stairwell?

At the foot of the relevant flight or on the landing, at eye level and clear of obstruction, so it is seen as the stairs are approached.

Which sizes are available?

Two: 300 × 100 mm and 600 × 200 mm. A made-to-measure size can be produced on request.

How do I choose between the up and down versions?

Pick the one that mirrors the real route: this model for stairs going up to the right, the matching variants for going down or for a left-hand start.

Price: From €36.00 to €44.00 excl. VAT
Unit: The panel
Conditioning: Individually
Guarantee: 1 year
Printing: Silkscreen
Printing resistance: Excellent
General resistance: Oils / Solvents
Form: Rectangular
Color: Green
Certification: ISO 7010 standard: graphic symbols and safety signal colors

Brand SBE

Reference SP-CS-311-2-PH

EAN13 3701053911318

Choose product attributes:

Ref.	Format	Unit price	Buy
SP-CS-311-1-PH	300 x 100 mm	1+ €52.80
SP-CS-311-2-PH	600x200mm	1+ €43.20

Towards the exit door, on the right Photoluminescent: visible with no power Green ISO 7010 background Two sizes (300 × 100 / 600 × 200 mm) Rigid 1 mm PVC Made to measure
