Panneau évacuation picto escalier gauche descente photoluminescent

Photoluminescent evacuation sign, stairs down to the left - emergency exit, ISO 7010

From €36.00 to €44.00 excl. VAT (?)

The panel

Stairs going down, to the left
Glows in the dark (photoluminescent)
Green ISO 7010 background
Two sizes (300 × 100 / 600 × 200 mm)
Rigid 1 mm PVC
Customisation available

Format

Quantity (The panel)

Total : €43.20 excl. VAT

Delivery

✔️ In stock
Shipped within 7 days

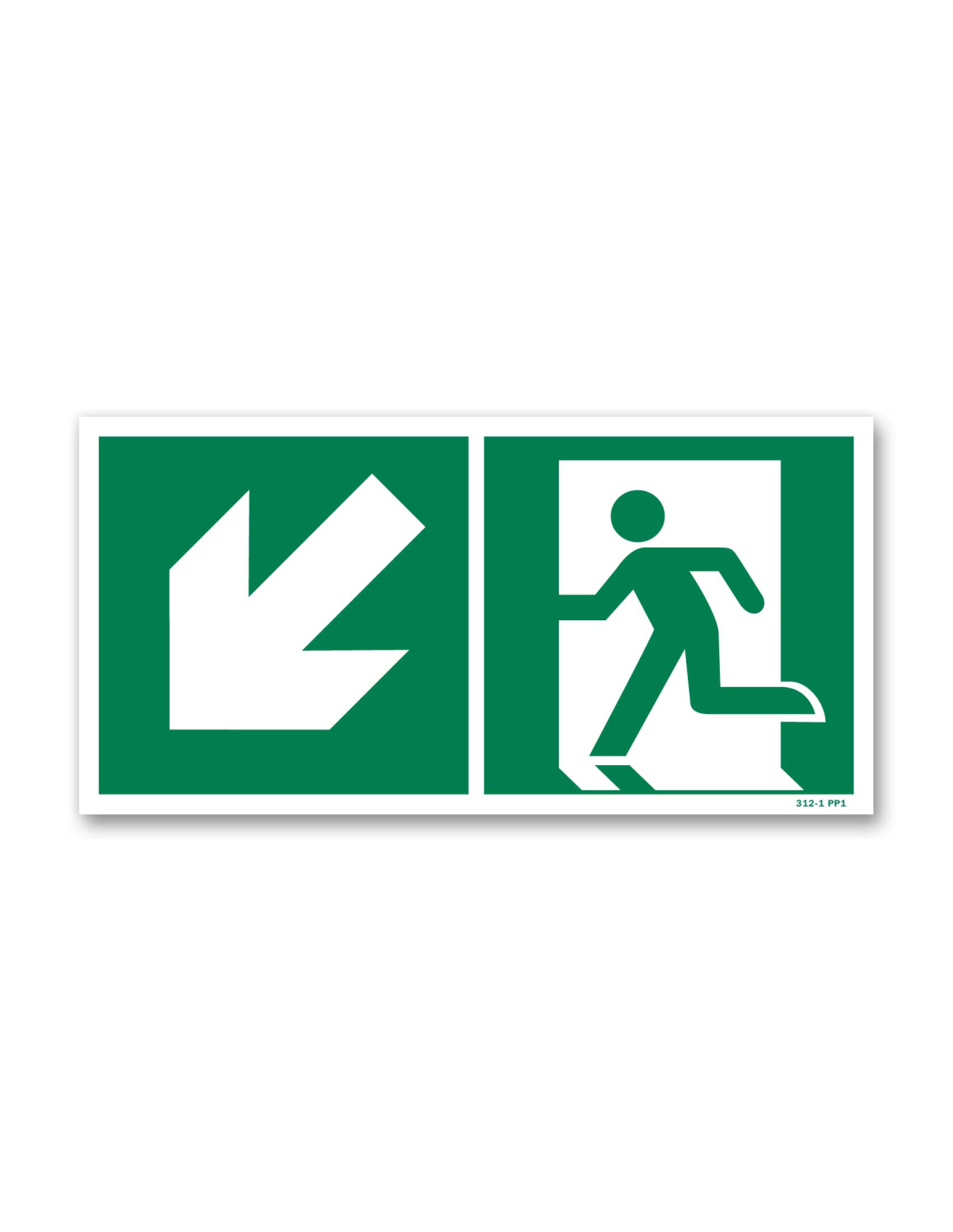

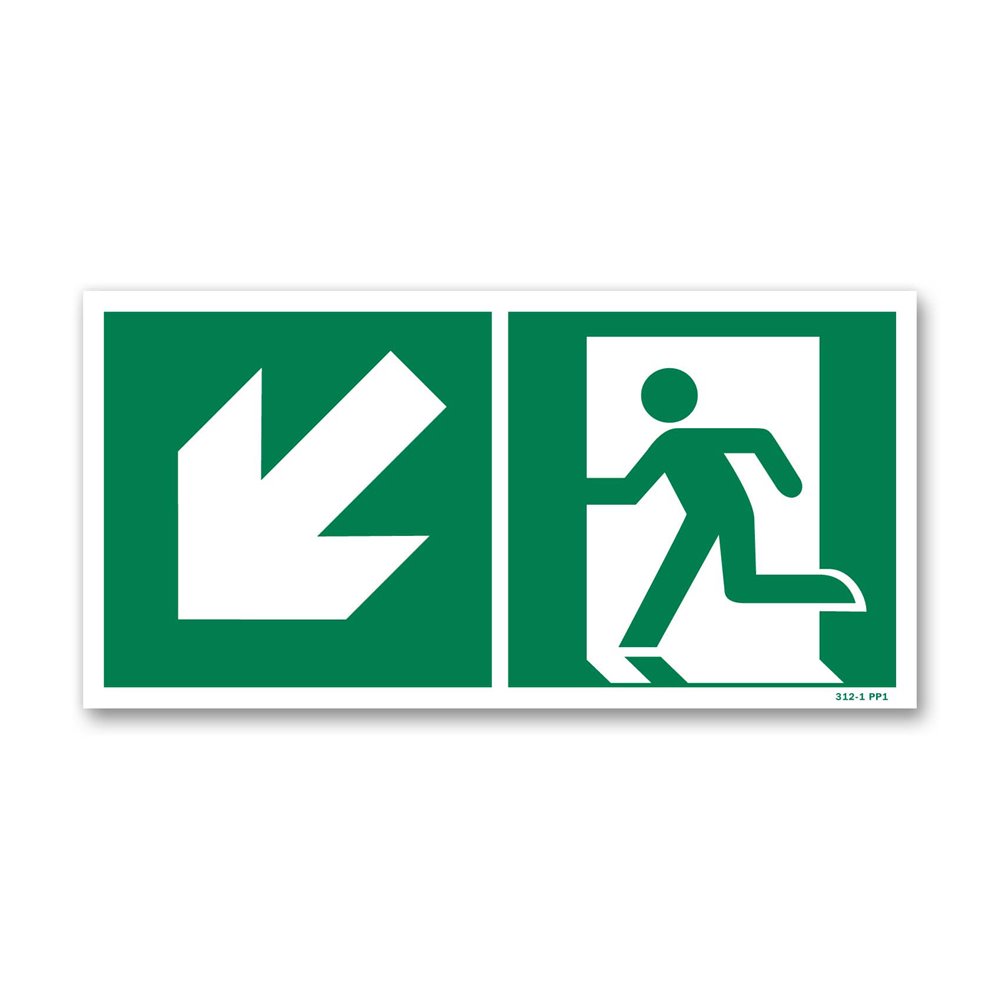

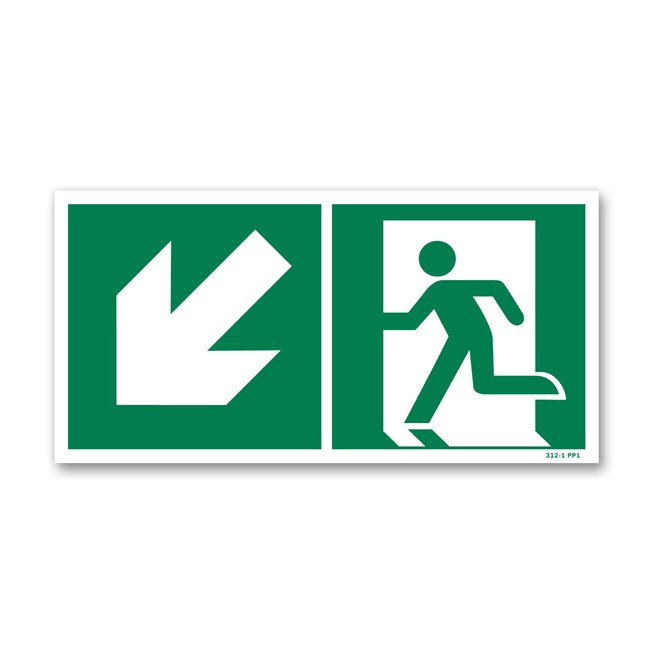

The left-down staircase photoluminescent sign marks an emergency exit taken by a staircase descending to the left. Its photoluminescent face keeps glowing once the lights go out - exactly when a flight of steps becomes the riskiest passage of an evacuation. The pictogram, on a standardised green ISO 7010 background, reads without a single word. 1 mm PVC support, two sizes, indoor as well as outdoor fitting.

What the left-down staircase photoluminescent sign shows

It rounds out the photoluminescent evacuation signs range with the marker for a staircase descending to the left.

→ Exit by a staircase - the pictogram directs to an exit set on a lower level.
→ Descending to the left - the flight goes down and to the left.
→ Green ISO 7010 background - the colour code reserved for evacuation routes.
→ Photoluminescent face - it stays legible in the dark, with no power.
→ 1 mm PVC support - a rigid board that screws or bonds into place.
→ Two sizes - 300 × 100 mm and 600 × 200 mm depending on reading distance.

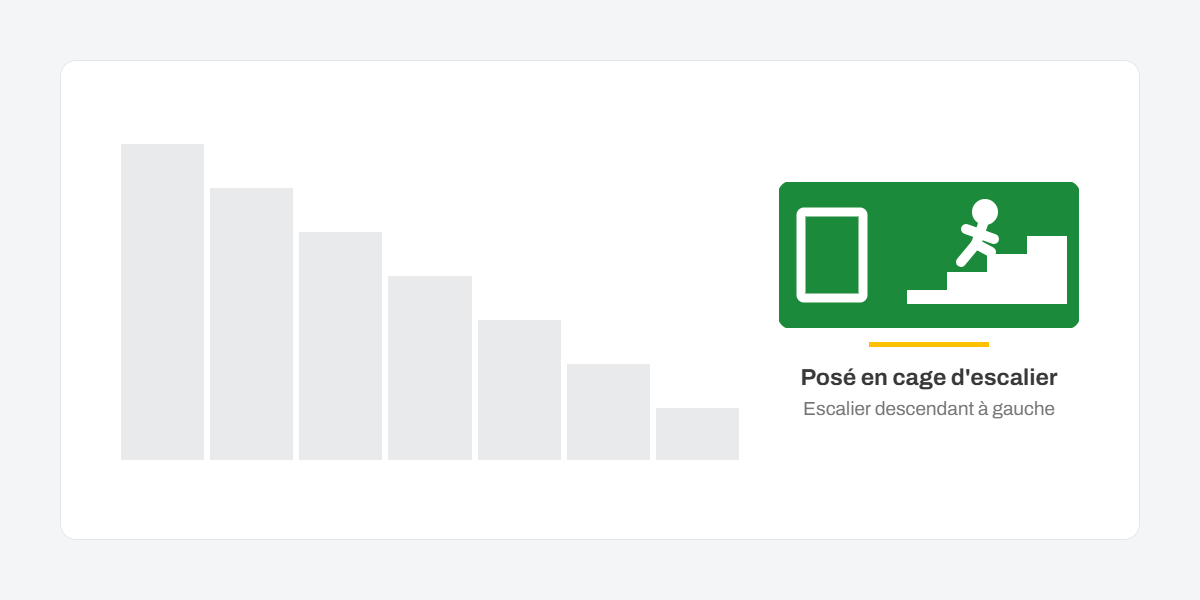

Marking a staircase that descends to the left

In most buildings, evacuating means going down: reaching the ground floor, then the way out. This sign captures that exact case: the flight that descends to the left.

Fitted at the head of the steps or on the landing, at eye level, it settles the choice between the two possible directions - hesitation that costs dearly in smoke. Its instant reading comes from the standardised pictogram, the same across Europe.

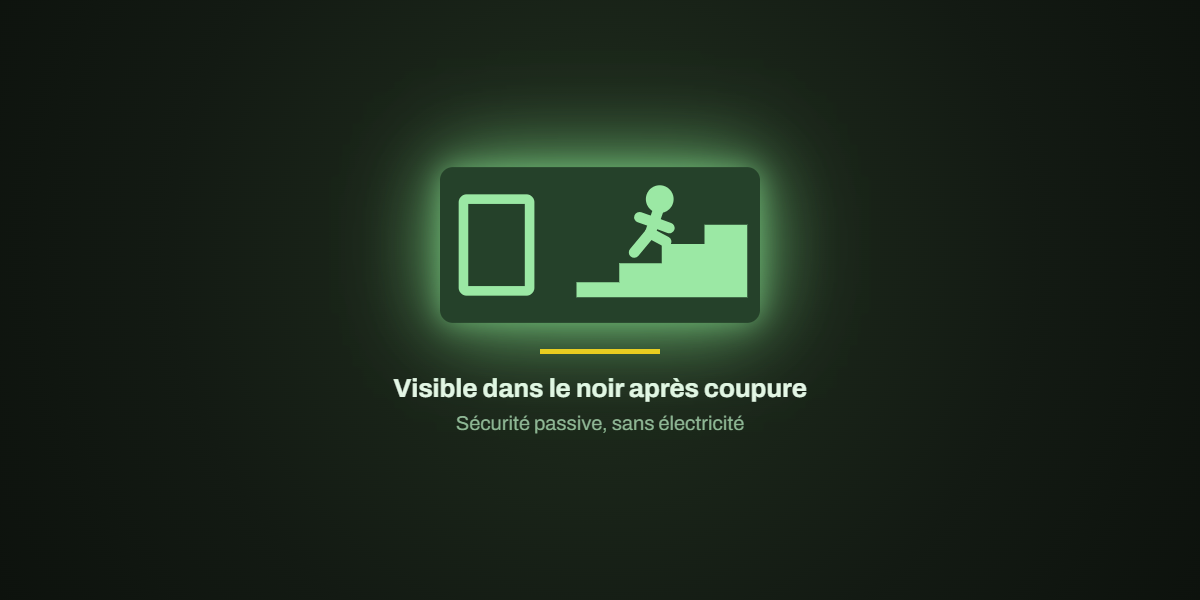

Photoluminescence: staying visible when the light fails

What sets this sign apart is its surface: it stores the ambient light and releases it once the room goes dark, with no battery and no wiring. And going down a staircase blind is precisely where lighting is missed most - a power cut, smoke masking the fixtures. The luminous green face then takes over and keeps the flight identifiable for the length of the evacuation. It is passive safety, independent of the mains, complementing the standard signage rather than replacing it.

Four staircase pictograms: which to choose

The staircase varies along two axes: the direction (down or up) and the side (left or right). A guide:

Configuration	Sign
Down to the left (this model)	left-down staircase
Up to the left	left-up staircase
Exit in direct view	photoluminescent exit / emergency exit
Exit through a right-hand door	exit sign, right arrow

Two sizes cover most installations: 300 × 100 mm for a stairwell or standard landing, 600 × 200 mm for reading at distance or overhead. If your evacuation plan calls for a specific format, made-to-measure production is available.

This signage belongs to a wider accessories and signage approach and the people security framework, and pairs with the non-photoluminescent evacuation signs (green). For the underlying logic of colours and symbols, see the ISO 7010 standard guide.

Questions fréquentes

What does this pictogram mean?

It marks an emergency exit taken by a staircase that descends to the left. The symbol and green background follow the ISO 7010 standard.

Does it need power or wiring?

No. The surface is photoluminescent: it recharges from the room lighting and then glows in the dark, with no electricity and no battery.

Where should it go in a stairwell?

At the head of the relevant flight or on the landing, at eye level and clear of obstruction, so it is seen before the descent begins.

Which sizes are available?

Two: 300 × 100 mm and 600 × 200 mm. A made-to-measure size can be produced on request.

How do I choose between the down and up versions?

Pick the one that mirrors the real route: this model for stairs going down to the left, the matching variants for going up or for a right-hand start.

Price: From €36.00 to €44.00 excl. VAT
Unit: The panel
Conditioning: Individually
Guarantee: 1 year
Printing: Silkscreen
Printing resistance: Excellent
General resistance: Oils / Solvents
Form: Rectangular
Color: Green
Certification: ISO 7010 standard: graphic symbols and safety signal colors

Brand SBE

Reference SP-CS-312-2-PH

EAN13 3701053911394

Choose product attributes:

Ref.	Format	Unit price	Buy
SP-CS-312-1-PH	300 x 100 mm	1+ €52.80
SP-CS-312-2-PH	600x200mm	1+ €43.20

In compliance with MFX 08003 ISO 6790/7010 Silk-screen printing Indoor and outdoor use Custom-made on request
