Container bolt seal - 8 mm pin, grade H

€189.60 excl. VAT (?)

The 100 seals

Grade H to ISO 17712:2013
8 mm pin, 69 mm long
Same number on pin and body
Five body colours
Custom marking available

Color

Prices

Quantity (The 100 seals)

Total : €189.60 excl. VAT

Delivery

Guarantees

✔️ In stock
Shipped within 9 days

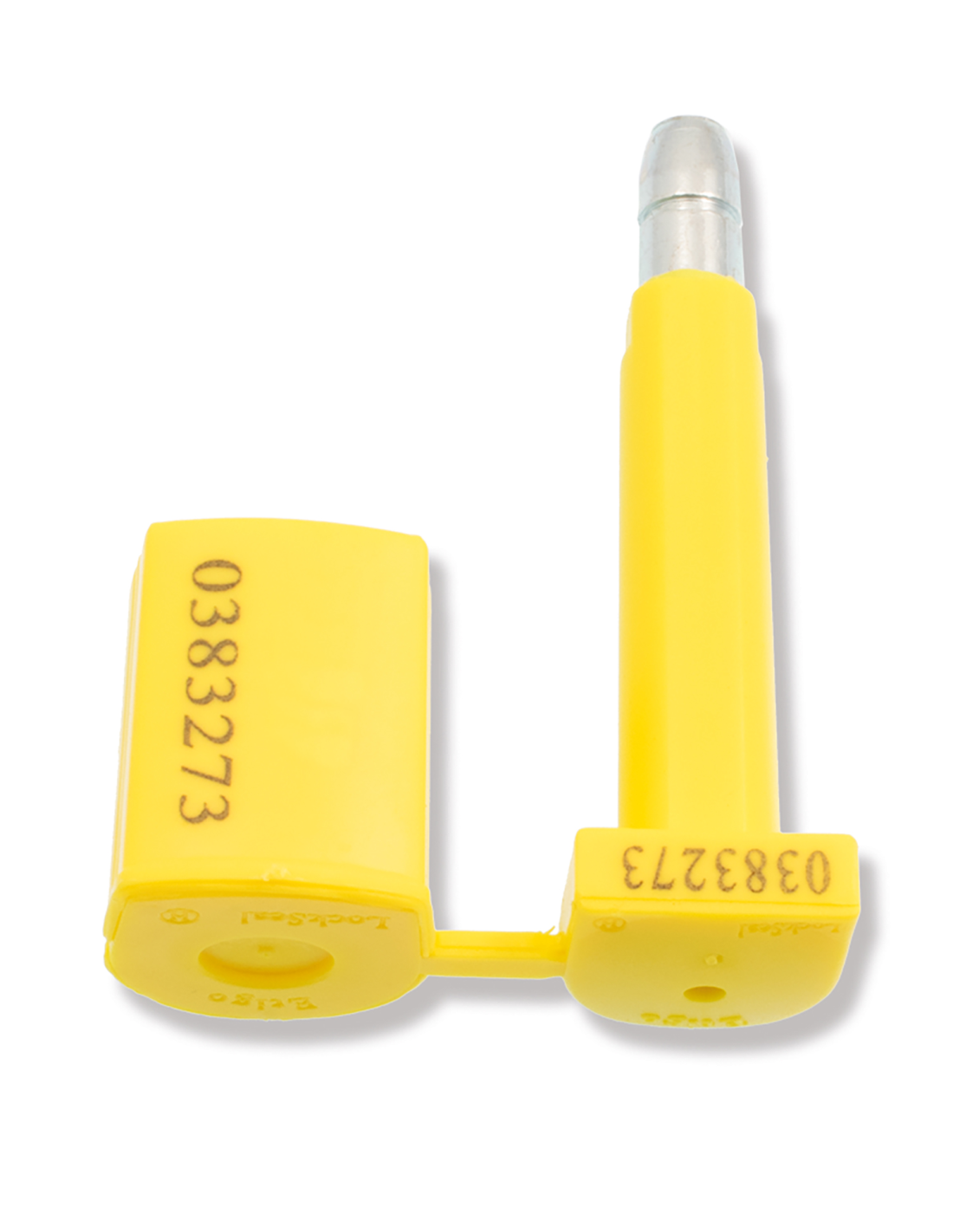

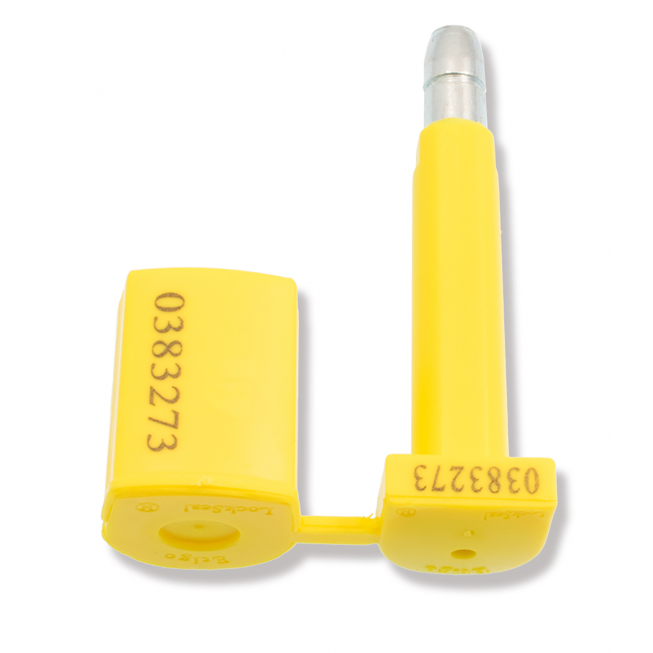

The MSEC-CL-LOC-BC container bolt seal is the most widely used seal for closing container and lorry doors. An 8 mm steel pin locks into a 20 mm ABS and polystyrene body, for an overall length of 69 mm. Classified grade H under ISO 17712:2013, it meets the high security level defined by the standard. Pin and body carry the same number, so you can identify a load at departure and check it on arrival.

Grade H container bolt seal: what matters

Within the range of security seals for transportation, this bolt seal is the one to choose when a closure calls for the highest security class of the standard.

High security class: grade H is the highest of the three levels (I, S and H) defined by ISO 17712:2013.
8 mm pin: a thick steel shank sized for the locking bars of container doors.
20 mm ABS and polystyrene body: a rigid housing that shields the locking mechanism.
69 mm overall length: a format that fits the usual closure points of a container or a lorry.
Matching numbers on pin and body: the two parts can be checked against each other at a glance.
Five body colours: yellow, green, blue, orange and white, to tell flows or hauliers apart.

ISO 17712 seal: what grade H covers

ISO 17712:2013 sorts mechanical seals into three levels: I (indicative), S (security) and H (high security). The level reflects how the seal withstands attempts at mechanical opening.

This container seal is classified grade H, the most demanding of the three. It is the class to quote when a customer, a haulier or an inspection body asks which seal was fitted: reference MSEC-CL-LOC-BC and the mention ISO 17712:2013 grade H are enough to qualify it.

Our guide which security seal for which use explains the three classes and places this bolt seal next to a cable seal and a metal seal for containers.

Numbered seal: traceability from dispatch to delivery

Each seal carries the same number on the pin and on the body. The two parts are packed separately and come together when the seal is fitted; the matching numbers are checked on arrival.

The number is copied onto the shipping documents: delivery note, bill of lading or consignment note. In a dispute, it ties the seal to one shipment and one load.

The logic is the same as for the numbered security adhesive tape applied to parcels: a unique identifier, recorded at departure and compared on arrival. Custom marking options are available; contact our sales team to check feasibility and conditions.

Lorry, sea container, van: where this bolt seal fits

One seal covers most closures in road and sea transport. The table below matches each need.

Use	Recommendation
Sea or road container	Grade H seal on the door locking bars.
Lorry, semi-trailer, light commercial vehicle	Grade H seal on the rear or side doors.
Quick identification of a load	Body available in five colours: yellow, green, blue, orange, white.
Tracking one seal number per shipment	Same number on pin and body, copied onto the documents.
Compliance check requested by a customer or haulier	Quote reference MSEC-CL-LOC-BC and class ISO 17712:2013 grade H.

For a curtain-sided trailer or for strapping, the range offers dedicated models such as the pull tight transportation security seal or the security seal for strapping.

Fitting and checking the bolt seal in four steps

Check before fitting: inspect the body and the pin, then record the number.
Fit: pass the pin through the locking bars, then push it into the body until it locks.
Record: copy the number onto the shipping documents, against the load concerned.
Check on arrival: make sure the seal is intact and that the pin number matches the body and the documents.

An intact body, a matching number and a signed document: that is what the consignee should find when the doors are opened. For locking bars of another diameter, the universal smooth rod security seal completes this model.

Frequently asked questions

Does this container seal comply with ISO 17712:2013?

Yes. It is classified grade H, the high security class of ISO 17712:2013. The standard sets three classes, I, S and H; grade H is the most demanding. For a compliance check, quote reference MSEC-CL-LOC-BC and the mention ISO 17712:2013 grade H.

What are the dimensions of the bolt seal?

The seal is 69 mm long. The pin is 8 mm in diameter and the ABS and polystyrene body is 20 mm in diameter. These dimensions suit the locking bars of container and lorry doors.

Can I choose the colour of the seal?

Yes. The body comes in five colours: yellow, green, blue, orange and white. Colour helps tell a flow, a site or a haulier apart. The numbering stays identical on pin and body whatever the colour.

How do I check a numbered seal on arrival?

First make sure the body and the pin are intact. Then compare the pin number with the body number, and both with the shipping documents. If they differ, report it to the haulier before unloading continues, as with any security seal.

Price: €189.60 excl. VAT
Unit: The 100 seals
Security: Excellent
Ø Cable: 8 mm diameter nail
Material: ABS + Polystyrene
Color: Yellow, Green, Blue, Orange, White
Format: 20 mm diameter base
Length: 69 mm
Standards: ISO 17712:2013, grade H
Customs tariff: 83099090

Brand SBE

Reference MSEC-CL-LOC-BC

EAN13 36078
