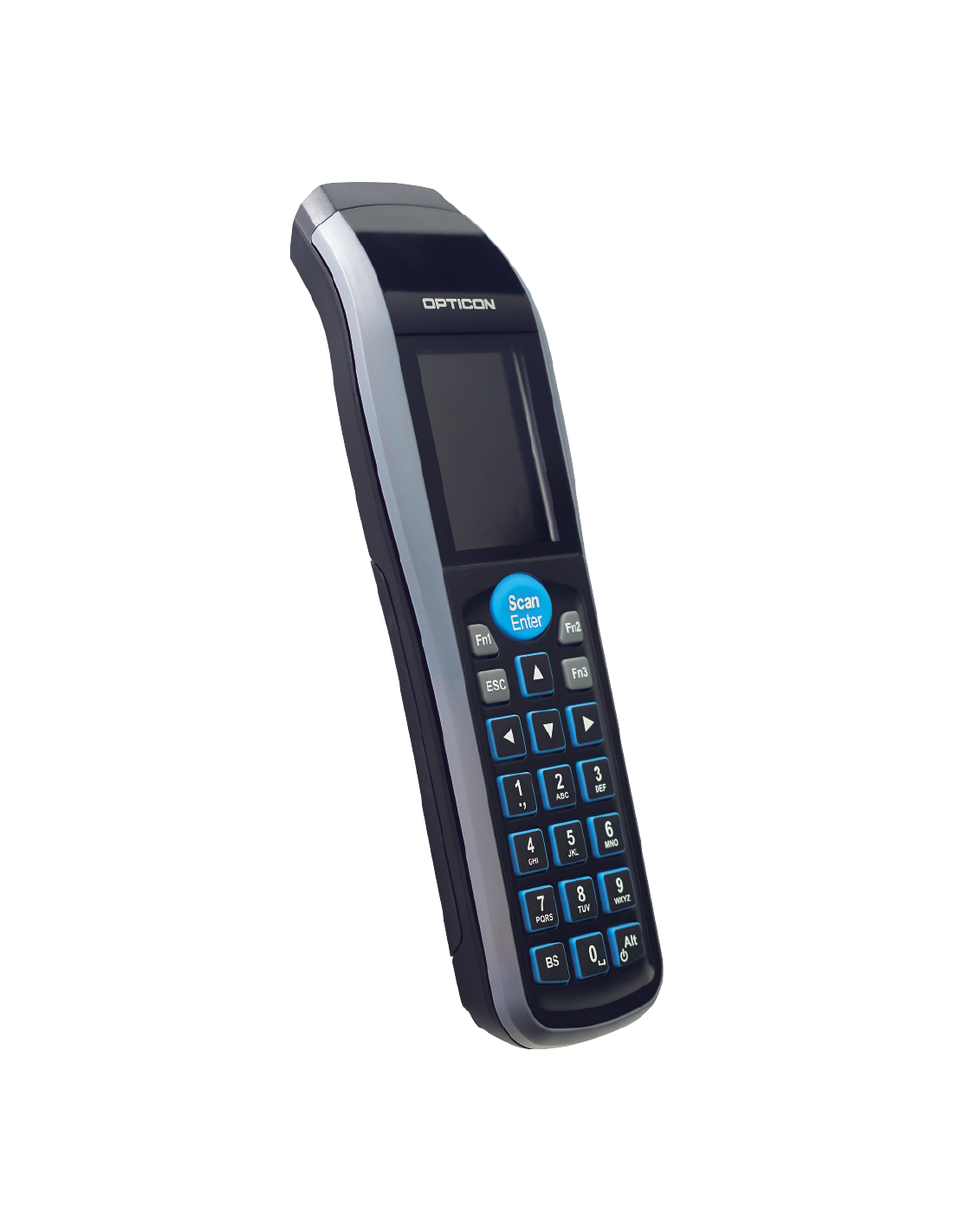

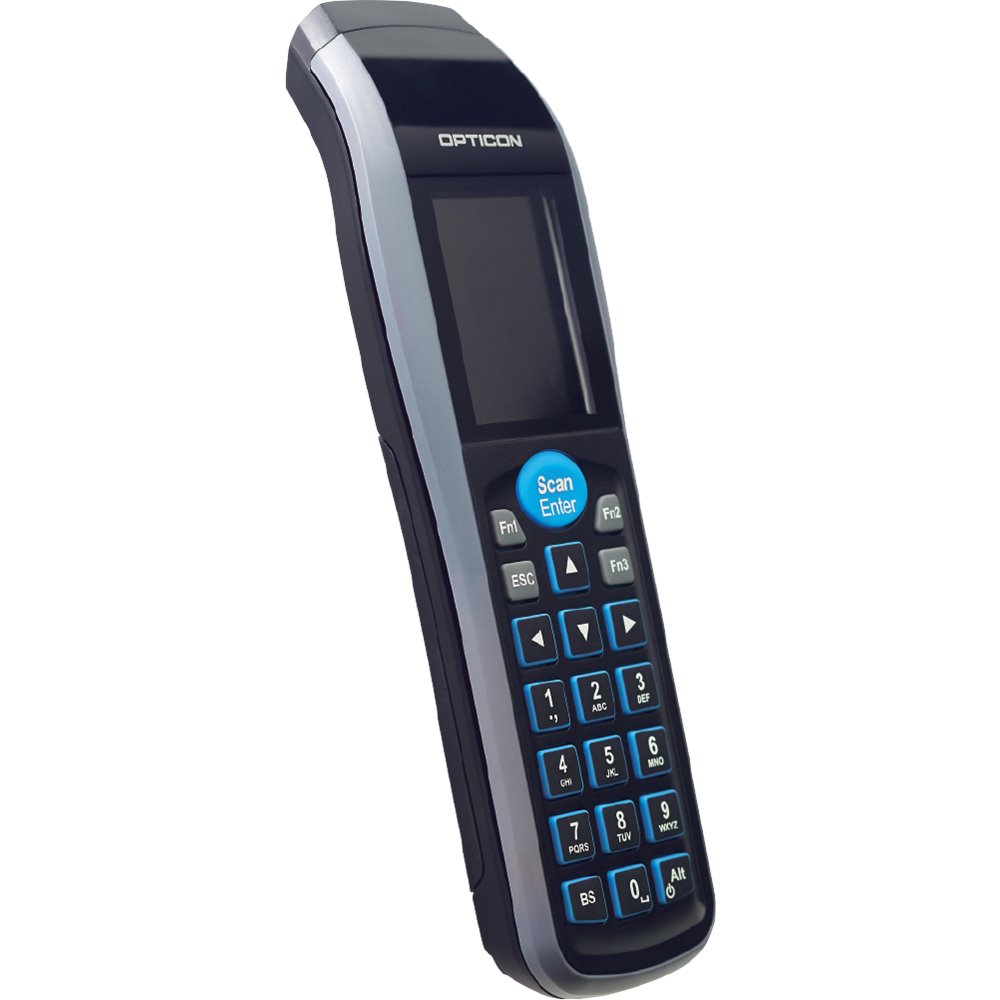

    • terminal laser barcode reader en

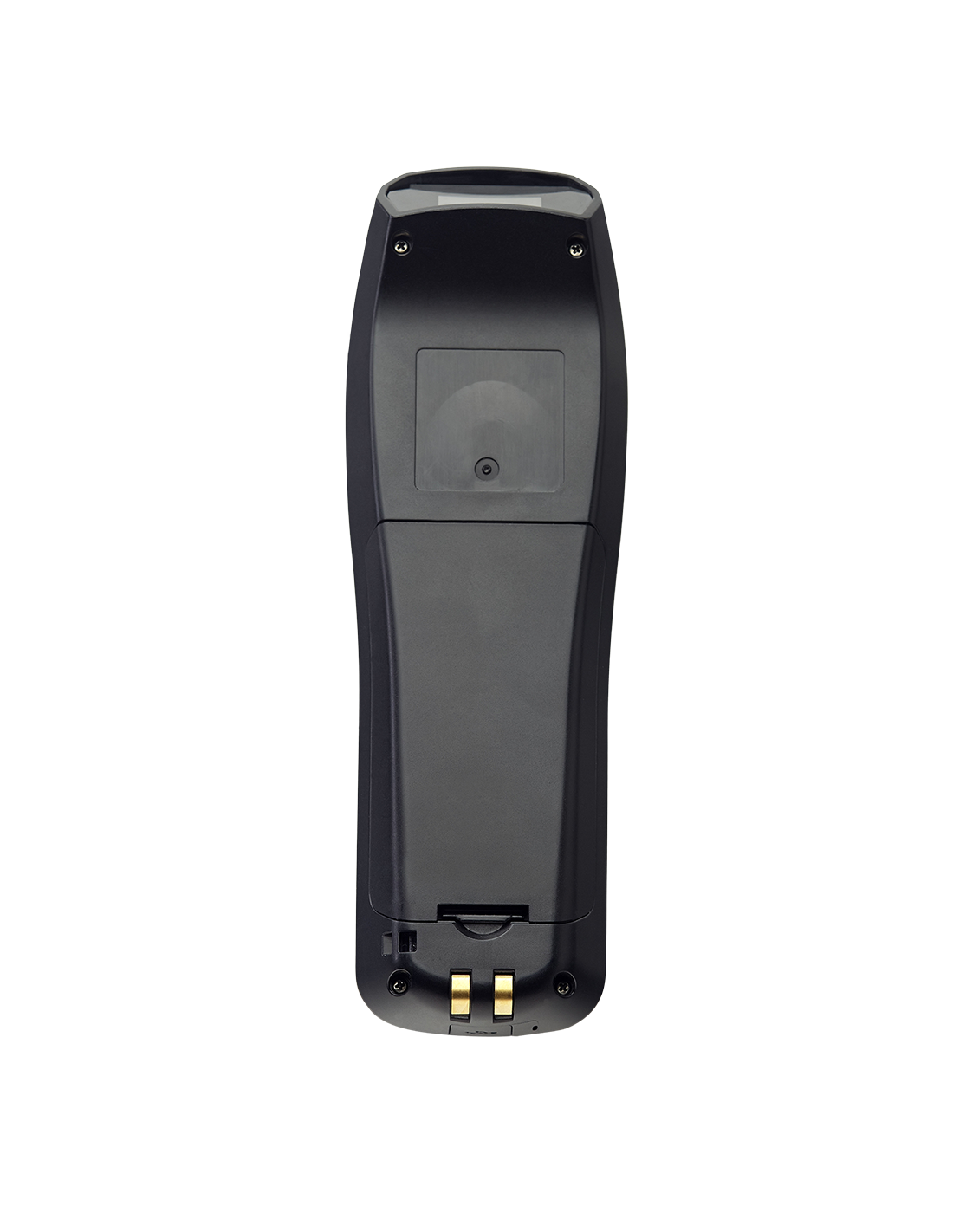

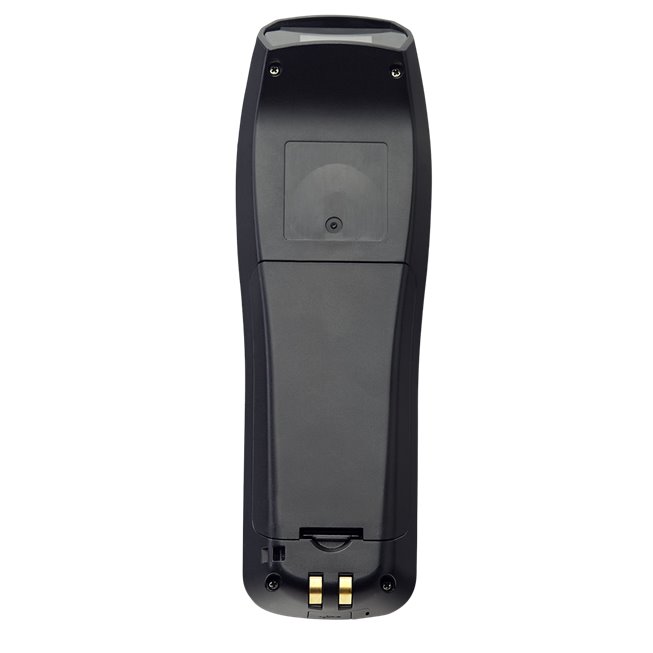

    • back of terminal laser en

    OPH-3001 1D Laser Terminal

    De 527,00€ à 620,00 Tax excluded

    the terminal

    Tax excluded Livraison : 3 à 6 semaines
    • Backlit color 2’’ display
    • USB connection, Mac and PC
    • Alpha digital keyboard
    • Light
    • Tilted head

    Read more...
    Programme d'inventaire
    Quantity

    Total : 527.00€ HT

    Production
    At home on Friday 01 October 2021

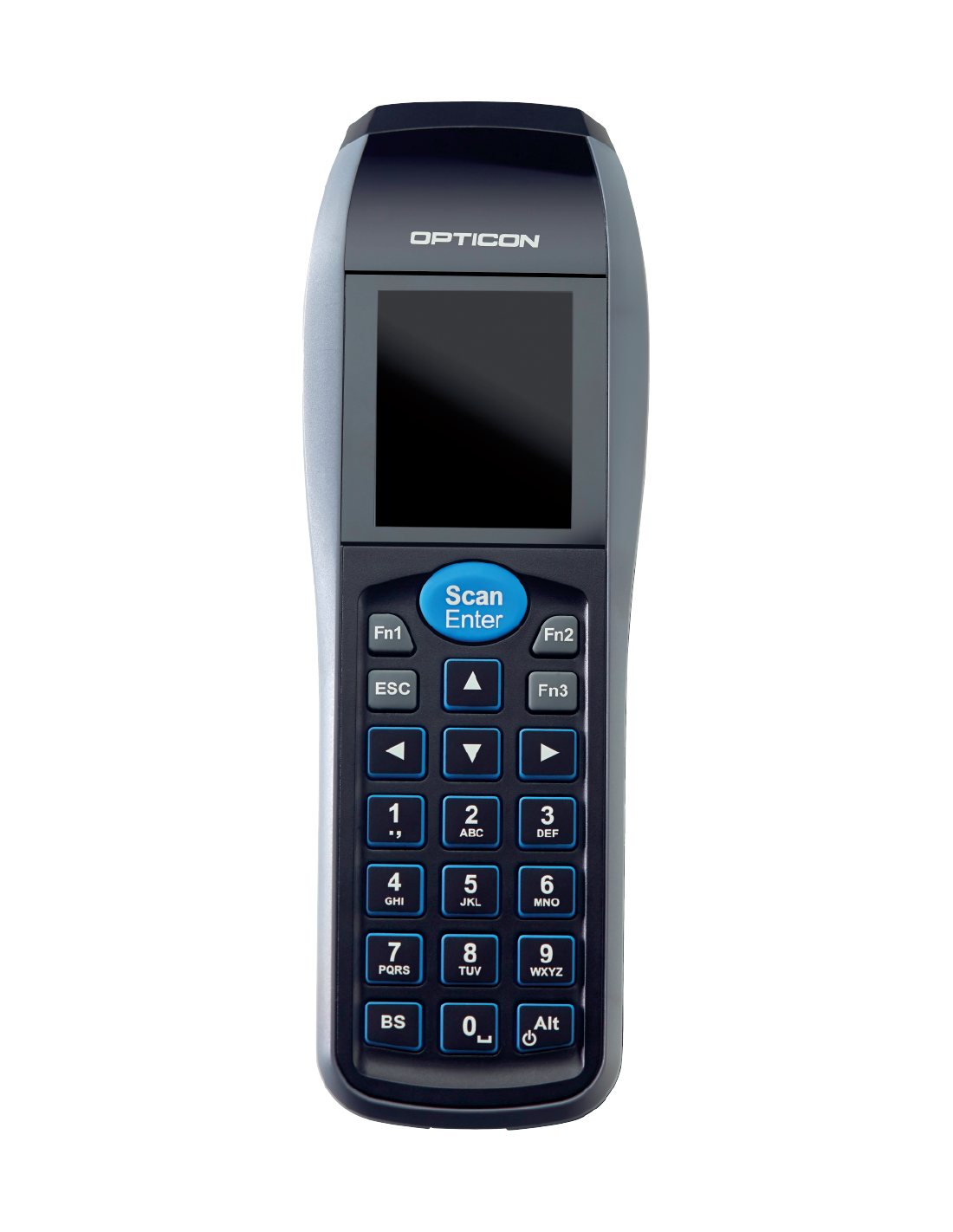

    This 1D OPH-3001 standalone Laser Terminal is ultra-compact and lightweight (156gr). Its professional design and its 2’’ color screen makes it the ideal tool for field inventory managers.


    A barcode reader with unbeatable capabilities to execute your inventory with ease

    This high-performance 1D Laser Terminal and quick navigation enables you to install high-performance proprietary applications for intensive barcode capture. It is the ideal tool due to its fast reading speed (100 scans / sec). In addition, the design of its curved end makes it convenient to read the barcodes at the top that are difficult to reach. Its memory has been increased to more than 4MB to store more than 100,000 of EAN 13 code, Chinese & Korean Post and GS1.

    The OPH-3001 laser terminal is robust and hardened, IP54 class, resistant to dust, moisture and heavy falls from a height of 1m50 on concrete. These features make it an unavoidable tool in the industry.

    The rechargeable lithium-Ion 3.7V 1100mAh battery has been upgraded to give this laser label reader a 40 hour battery life (1 scan / 10sec). Its LCD color screen with adjustable backlighting allows you to execute your data collection in environments that can be extremely bright.

    Efficient use thanks to the inventory program

    Ready to use! This terminal can be delivered with a inventory program pre-installed which allows access to the different functions of your terminal such as INVENTORY, UNLOAD and SETUP. This program allows the terminal to scan all 1D barcodes (and entry dates + quantity to be entered on the keyboard).

    Please note: This software does not deduct products taken out of stock.  It is therefore advisable to scan the products removed from stock at the same time and extract the data in a "Stock Removal" file.

    Easy data transfer

    To transfer your data from your terminal to your PC, we strongly recommend downloading the free OSECOMM 32 software, which allows you to transfer your data to your PC as a txt (.csv) file. You will find the downloadable file in the product specifications. You can also extract your data using the USB cable provided.

    On request, any proprietary applications meeting your specific needs can be developed in a very short time for a reduced budget. Tell us about your project and send us your specifications of the application(s) to be integrated.

    You will find the instructions for use of this terminal in the characteristics of this product.

    A kit containing all the necessary accessories for optimal use

    This laser terminal is delivered with a user’s guide, a ready-to-use battery and a USB cable allowing it to be connected to a computer for recharging and transferring data. For enhanced use of the OPH-3001, a power supply unit for easily connecting your laser terminal to a computer is also available. In addition, for optimal performance, spare batteries are sold at your SBE store. They will boost the autonomy of your Opticon to more than 80h without charge.

    ACC-LCB-OPH3000

    Data sheet

    Unit
    the terminal
    Conditioning
    individually
    Guarantee
    1 year
    Catalog code
    E1005 F1005
    Weight
    156g
    Format
    58.2x180.8x23.8mm
    Speed
    100 scans / sec
    Temperature resistance
    -10 ° C to 50 ° C
    Memory
    4 MB
    Autonomy
    40 hours
    Sensor type
    Laser
    Type of reading
    1D
    Reading distance
    200mm
    Resistance to falls
    IP54
    Number of bar codes read
    80
    Socle
    Not included

    Download

    Terminal Laser 1D OPH-3001 (FR)

    Fiche Technique Terminal Laser 1D OPH-3001 (FR)

    Download (2.55M)

    Manuel logiciel inventaire

    Download (208.97k)

    Logiciel gratuit OseComm

    Download (1.09M)

    Specific References

    ean13
    3701053910199

    No customer reviews for the moment.


    Tarifs dégressifs Ref. ACC-LCB-OPH3000- PROG

    Quantités Prix € HT
    With inventory program
    Prix € HT
    Without inventory program
    1 620 € 527 €
