The LF and HF RFID Reader and Encoder - TWN4 Multitech is designed for efficient management of RFID cards, RFID tags, and RFID labels. Operating at frequencies of 125 kHz and 13.56 MHz, it offers a comprehensive solution for access control, employee identification, supply chain management, and more. With its superior performance, this contactless reader can extend the reading distance by more than 50% for certain transponders, while offering remarkable compatibility with a variety of RFID technologies. Its exceptional flexibility and efficiency make it the ideal tool for various business applications.
The RFID reader TWN4 Multitech stands out for its ability to read more than 60 RFID technologies, including RFID cards, RFID tags, and RFID labels. With a reading distance of up to 10cm contactless, it features a powerful SDK for application development and 18 kb of flash storage. HF reading performance at 13.56 MHz is also optimized, offering a compact and robust solution.
| Technologies readed | SUPPORTED TRANSPONDERS |
|---|---|
| standard 13.56 MHz | ISO 14443A: LEGIC Advant5) , NTAG2xx, MIFARE Classic, MIFARE Classic EV16) , MIFARE DESFire EV1, MIFARE DESFire EV27) , MIFARE DESFire EV37) , MIFARE DESFire Light2) , MIFARE Mini, MIFARE Plus S, MIFARE Plus X, MIFARE Smart MX8) , MIFARE Ultralight, MIFARE Ultralight C, MIFARE Ultralight EV16) , SLE44R358) , SLE66Rxx (my-d move)8) , Topaz ISO 14443B: Calypso8) , Calypso Innovatron protocol8) , CEPAS8) , CTS, Pico Pass9) , SRI4K, SRI512, SRIX4K, SRT512 ISO 15693: EM4x338) , EM4x358) , ICODE SLI, LEGIC Advant5) , M24LR16/64, MB89R118/119, PicoPass9) , SRF55Vxx (my-d vicinity)8) , Tag-it NFC Forum Tag 1-5, Sony FeliCa12) LEAF Identity: LEAF13) ISO 18092 / ECMA-340: NFC Forum Tag 1-5, Sony FeliCa10) LEAF Identity: LEAF11) |
| Standard 125 kHz | AWID, Cardax13) , CASI-RUSCO, Deister13) , EM4050, EM4100, EM4102, EM4150, EM420014) , EM4305, EM4450, EM4550, HITAG 115) , HITAG 215) , HITAG S15) , ICT2) , IDTECK, ISONAS, Keri, Miro, Nedap13) , Pyramid, Q5, T5557, T5567, T5577, TITAN (EM4050), UltraProx, UNIQUE, ZODIAC |
| P Version | + G-Prox13) , HID 1326 Prox II, HID 1336 DuoProx II, HID 1346 ProxKey III, HID 1386 ISO Prox II, HID 1391 Micro Prox, Version standard + HID Prox, Indala, ioProx, Nexwatch |
| PI Version | Version standard + Version P + HID MIFARE DESFire SE, HID MIFARE Classic SE, HID SEOS, HID iCLASS Legacy/SR/SE |
The TWN4 Multitech RFID encoder is remarkably easy to use. It offers direct support for chip commands and allows for firmware updates in the field. The ability to simultaneously read LF and HF bands provides exceptional versatility for access control and other applications.
This product comes with the standard version of the firmware, which you can request to download here.
The firmware includes user guides, reference documents, drivers, pre-configured firmware images, and templates. It is available in English, German, and Spanish.
Capable of reading an extended range of technologies, including NFC, the RFID badge reader is used in various sectors such as security, access control, identification, and more. Whether for cards, labels, or RFID tags, it offers a tailored solution to secure your assets and streamline your daily operations.
Choosing the TWN4 Multitech contactless reader means opting for flexibility, performance, and versatility. Its ability to read a wide range of RFID technologies at an optimized reading distance, its performance at 13.56 MHz, and its ability to be updated in the field make it a top choice to meet the specific needs of your business or organization.

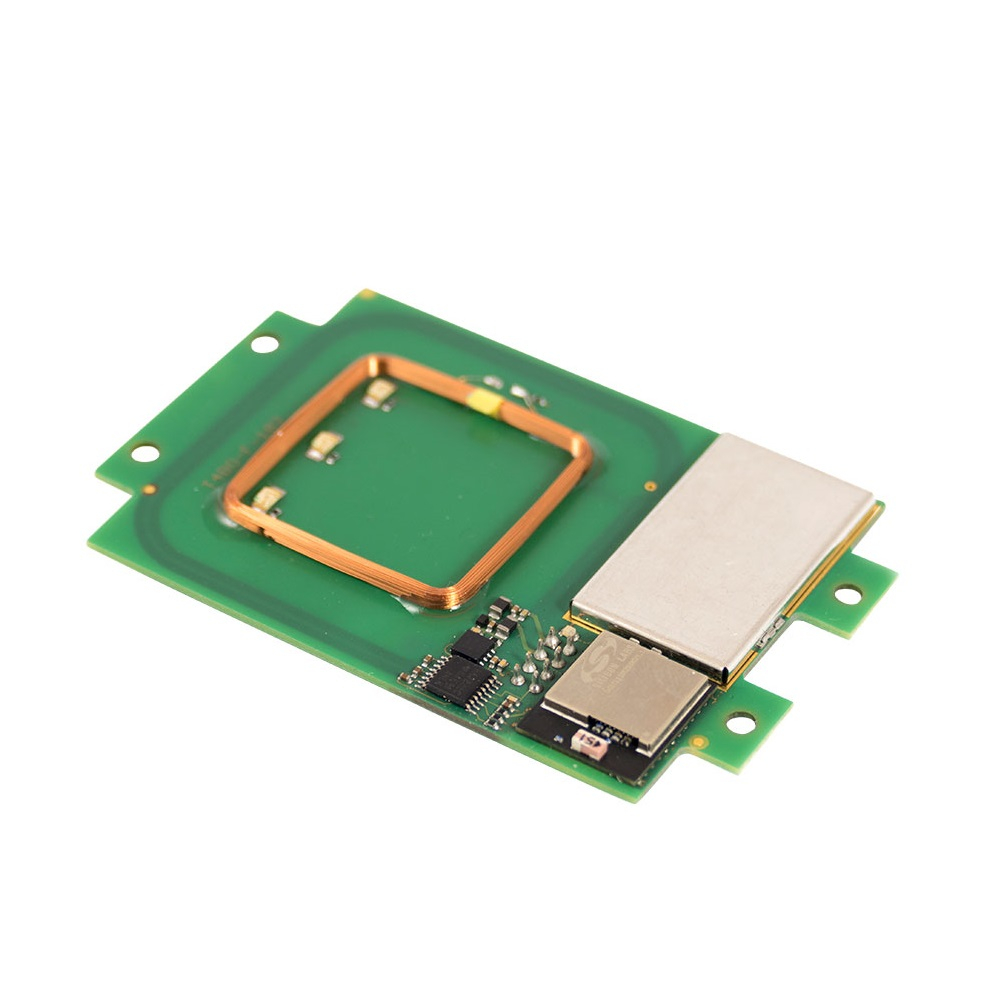

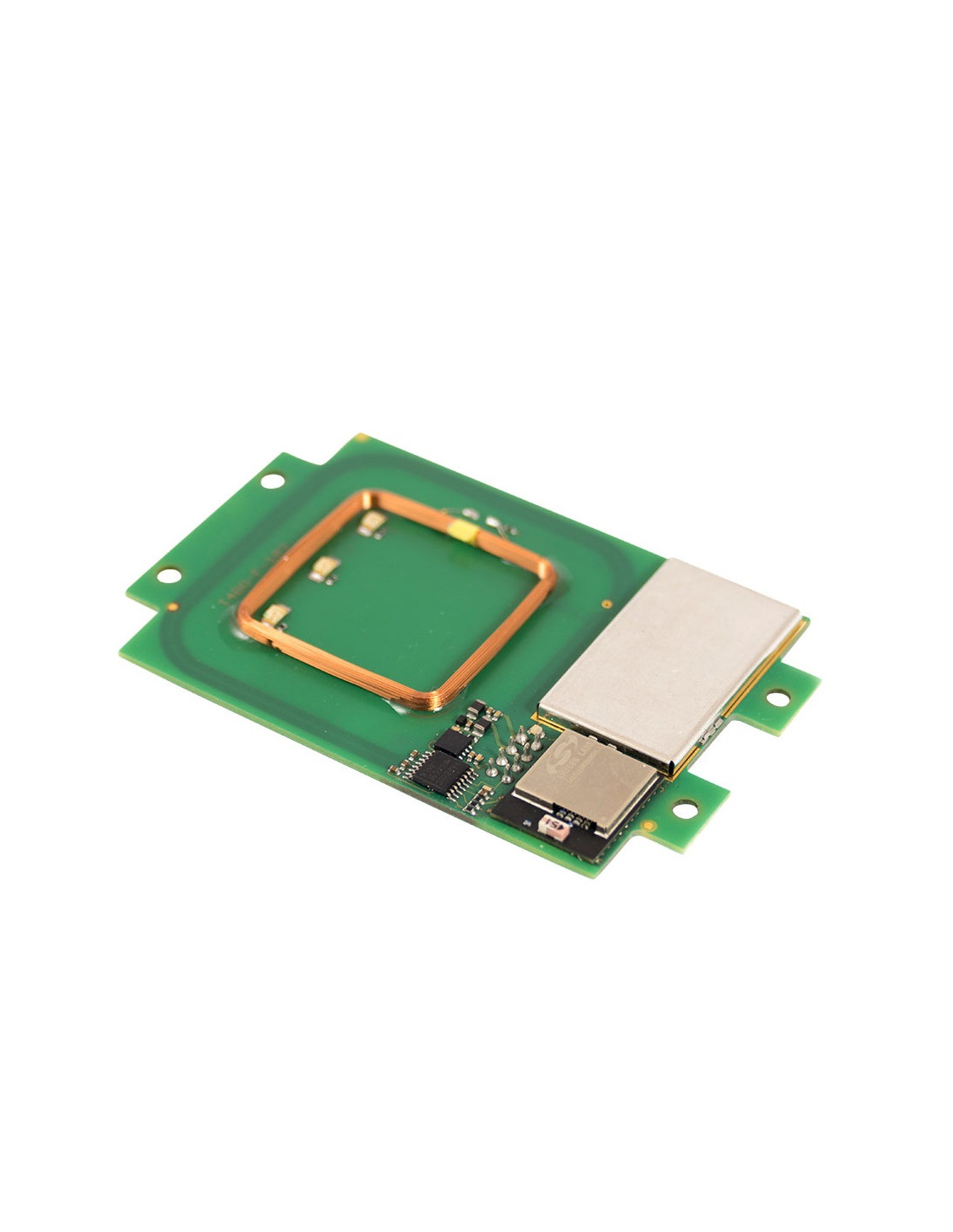

This RFID reader is also available without the black packaging, just the chip (board). This option enables developers and companies to design their own systems for integration into more complex devices. They can customize the functionality and appearance of the entire system to suit their needs. The board can be integrated into doors, turnstiles or printers.
Impressive Features of the TWN4 Multitech RFID Reader
The RFID reader TWN4 Multitech stands out for its ability to read more than 60 RFID technologies, including RFID cards, RFID tags, and RFID labels. With a reading distance of up to 10cm contactless, it features a powerful SDK for application development and 18 kb of flash storage. HF reading performance at 13.56 MHz is also optimized, offering a compact and robust solution.
No customer reviews for the moment.
Version Standard Ref. ACC-LCB-TWN4-LHF
| Quantités | Prix € HT |
|---|---|
| 1 | 230 € |
| 5 | 215 € |
| 10 | 192 € |
Version Version P Ref. ACC-LCB-TWN4-LHF-P
| Quantités | Prix € HT |
|---|---|
| 1 | 291 € |
| 5 | 272 € |
| 10 | 243 € |
Version Version PI Ref. ACC-LCB-TWN4-LHF-PI
| Quantités | Prix € HT |
|---|---|
| 1 | 352 € |
| 5 | 329 € |
| 10 | 294 € |
