These NFC labels are perfect for use in various industries, from retail to logistics and manufacturing.
Outstanding read performance
Our 65 x 35 mm HF-NFC RFID labels are equipped with Fudan N213 chips, ensuring optimal reading performance. Thanks to their NFC and HF (High Frequency) technology, they offer a reading distance of up to several dozen centimeters, ideal for a wide range of applications to optimize inventory, access control, or asset management systems.

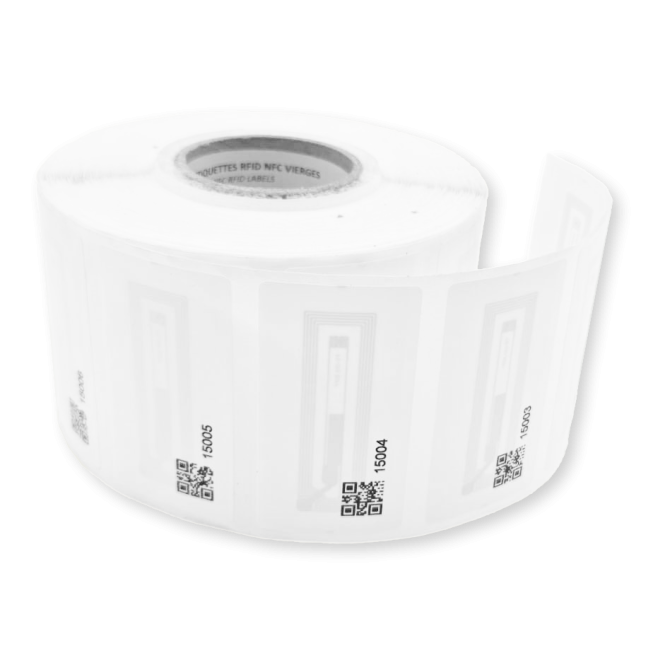

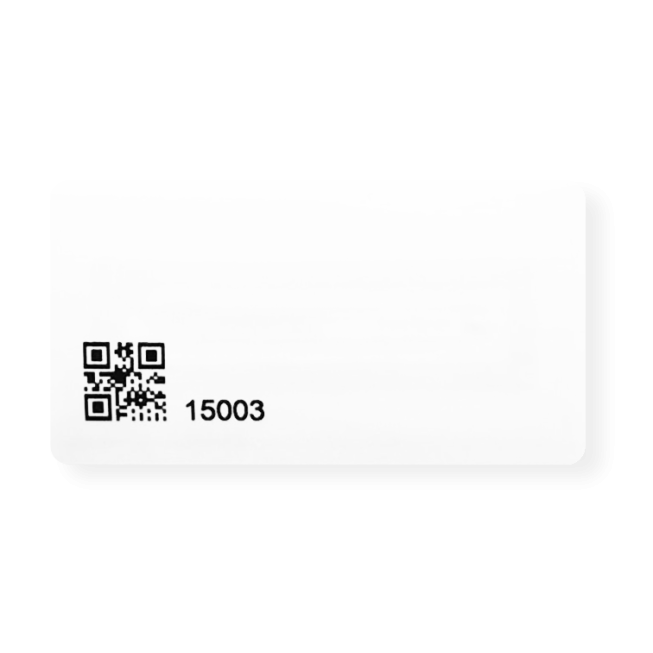

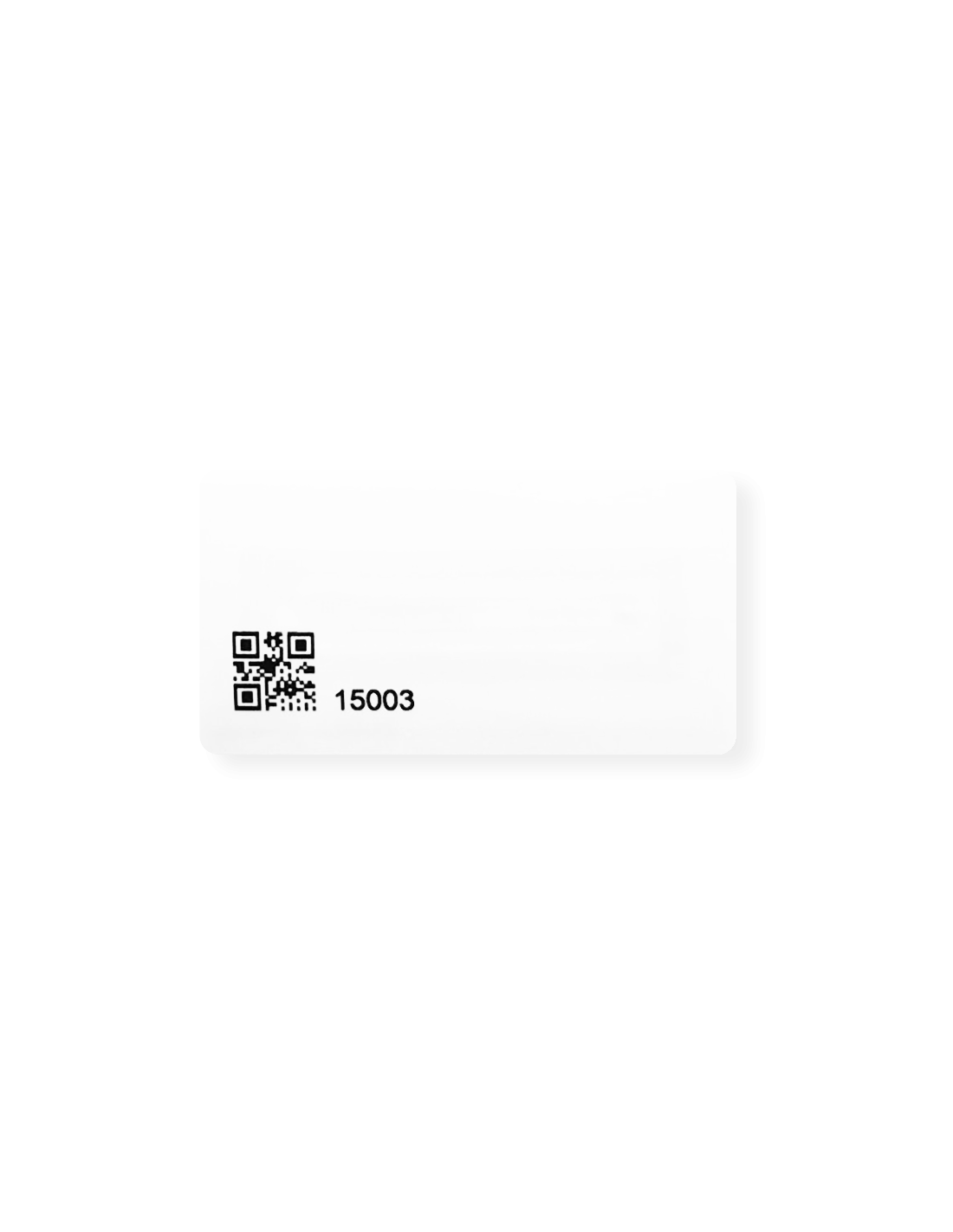

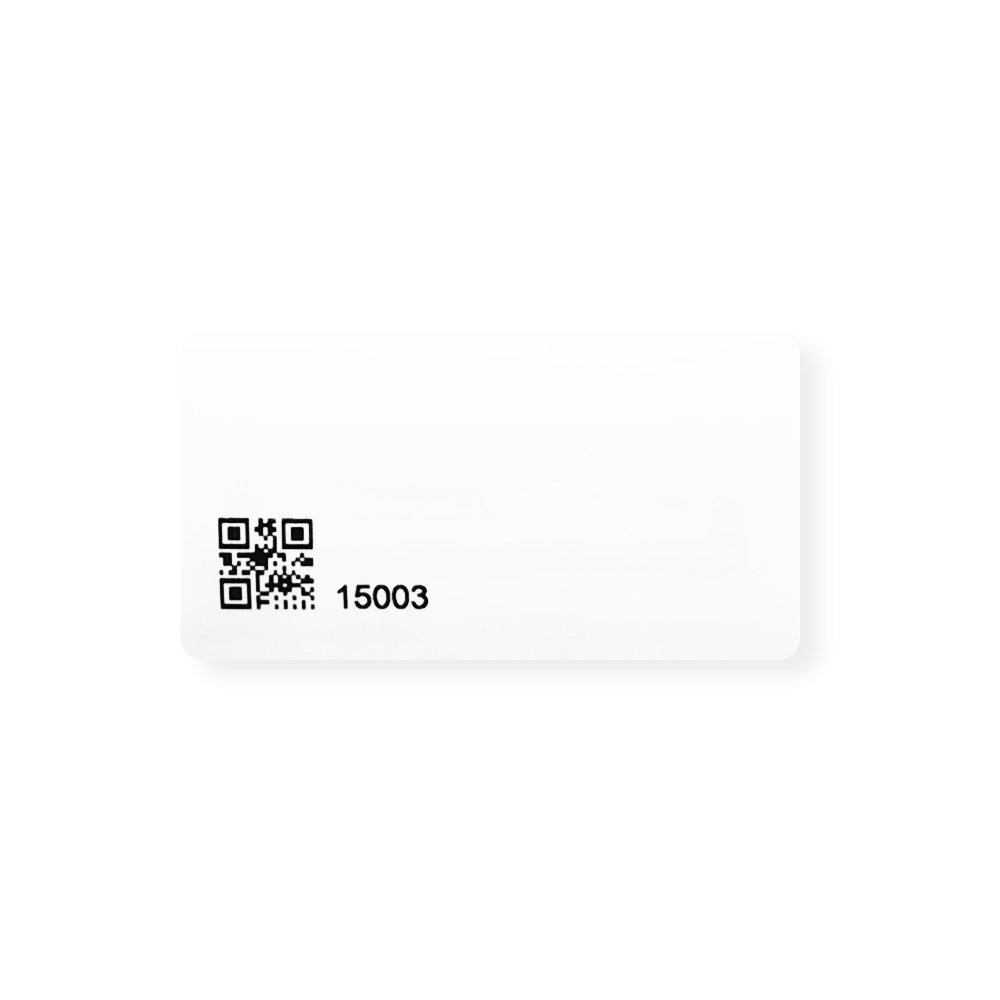

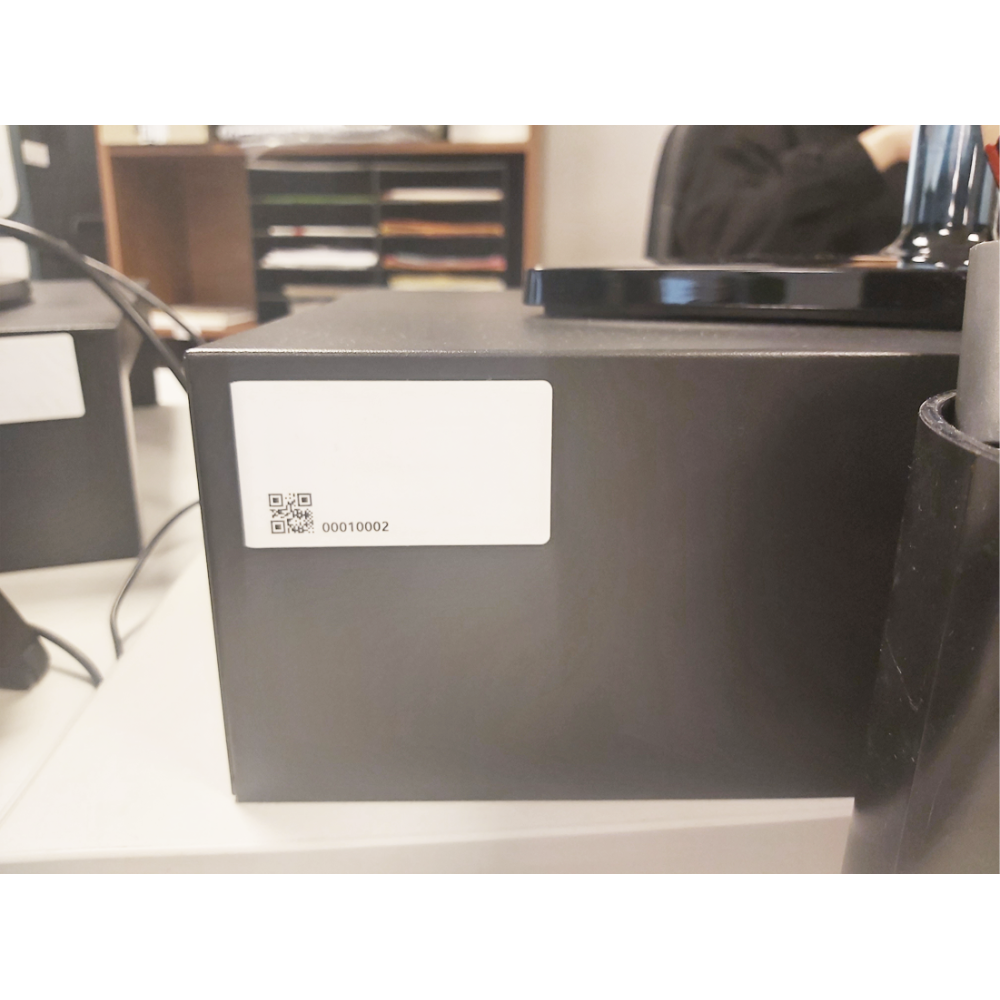

The label is equipped with a number on the left, a QR code that can be scanned with a smartphone, and can also be read with an HF RFID reader.
Applications and surface compatibility

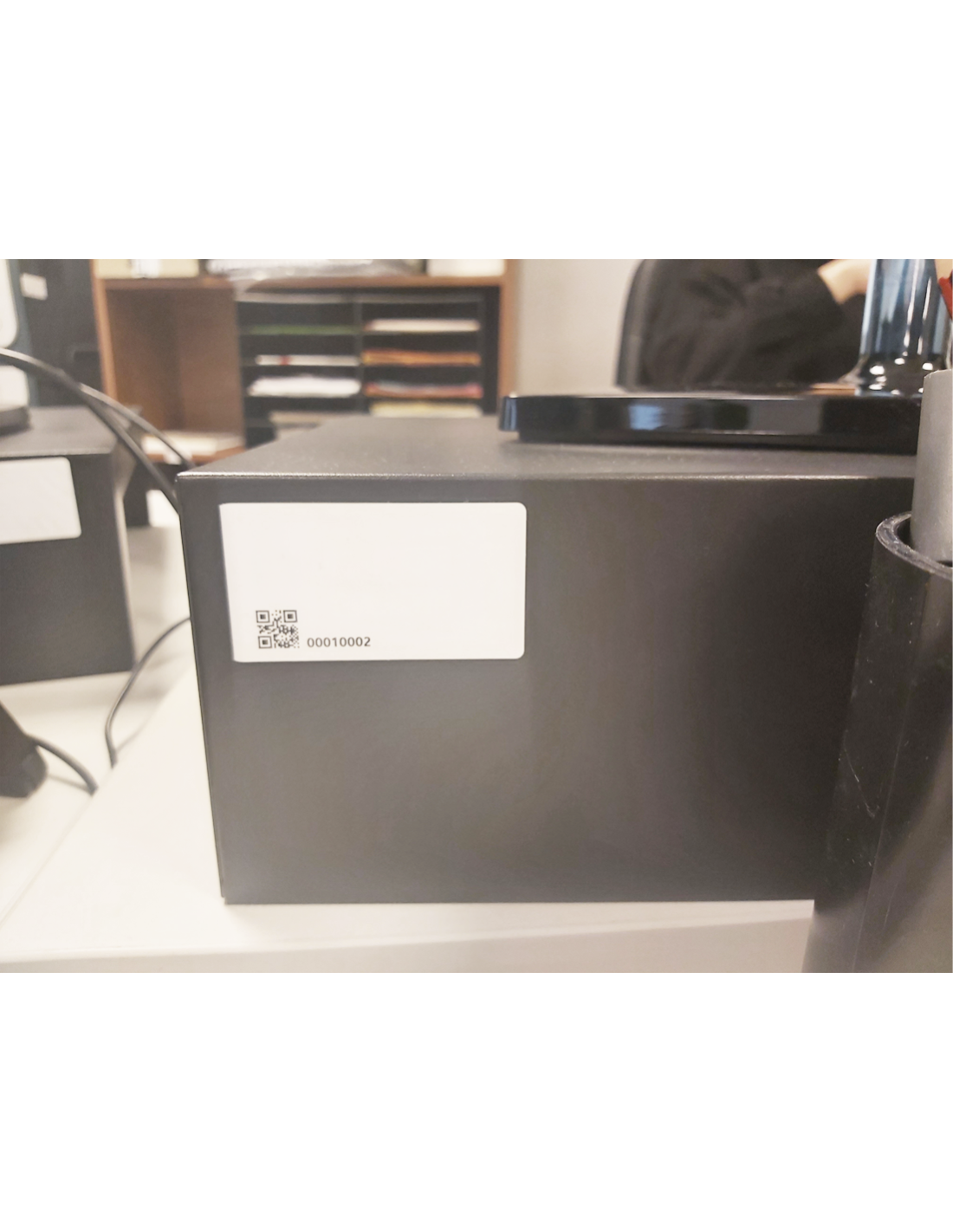

Standard HF-NFC RFID labels are perfectly suited for use on all surfaces: plastics, cardboard, and other non-metallic materials. For metal surfaces, we offer a special version that maximizes read performance thanks to a specific substrate to avoid electromagnetic interference.
Fudan N213 RFID chip
Our RFID labels are equipped with the Fudan N213 chip (equivalent to an NXP 213), a high-capacity NFC chip offering several advantages:
- 144 bytes of memory (divided into sectors for secure and flexible data management).
- Enhanced security thanks to a password to protect memory access.
- Compatible protocols: ISO/IEC 14443A for NFC devices, including smartphones.
Customization and enhanced security
Our RFID labels can be customized to meet your company’s specific needs. You can add a logo, barcodes, or specific information for increased visibility and optimized inventory management. In addition, each NFC label is already encoded with a serial number and barcode for enhanced security.
Technical specifications
| Features | Details |
|---|
| Chip Type | Fudan N213 |
|---|
| Memory | 144 bytes of user memory, with 120 to 128 characters available for NDEF messages |
|---|
| Frequency | 13.56 MHz (HF) / NFC |
|---|
| Protocol | ISO 15693, NFC Forum Type 2 |
|---|
| Reading Range | Up to 2 m |
|---|
| Dimensions | 65 × 35 mm |
|---|
| Adhesive | Strong and durable |
|---|
Technical details
- Unique encoding: Each HF label has a unique identifier (UID), ensuring perfect traceability and smooth inventory management.
- Ultra-strong adhesive: Thanks to its permanent and durable adhesive, these labels are ideal for long-term inventory management, providing excellent adhesion even in demanding conditions.
Formats and quantities

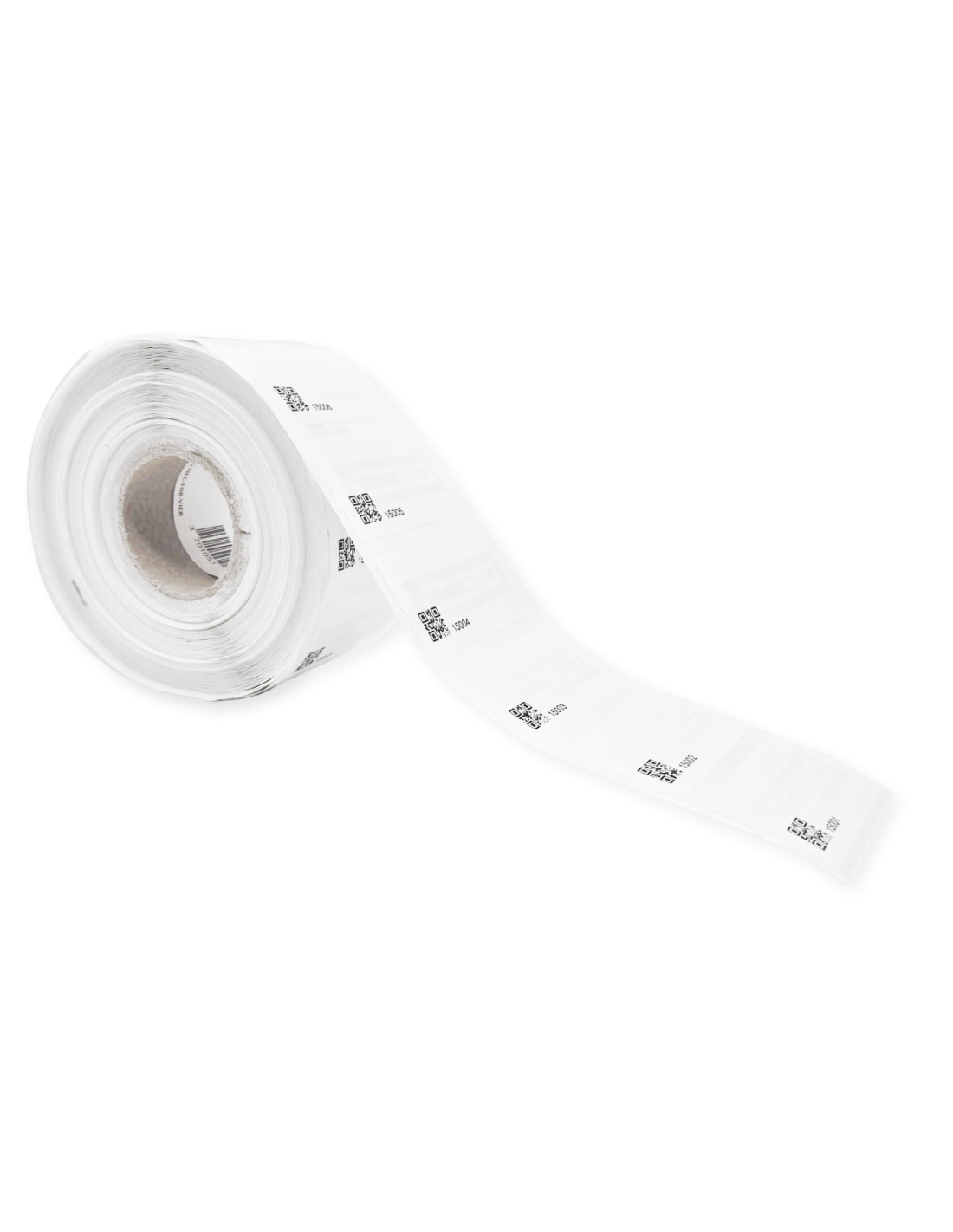

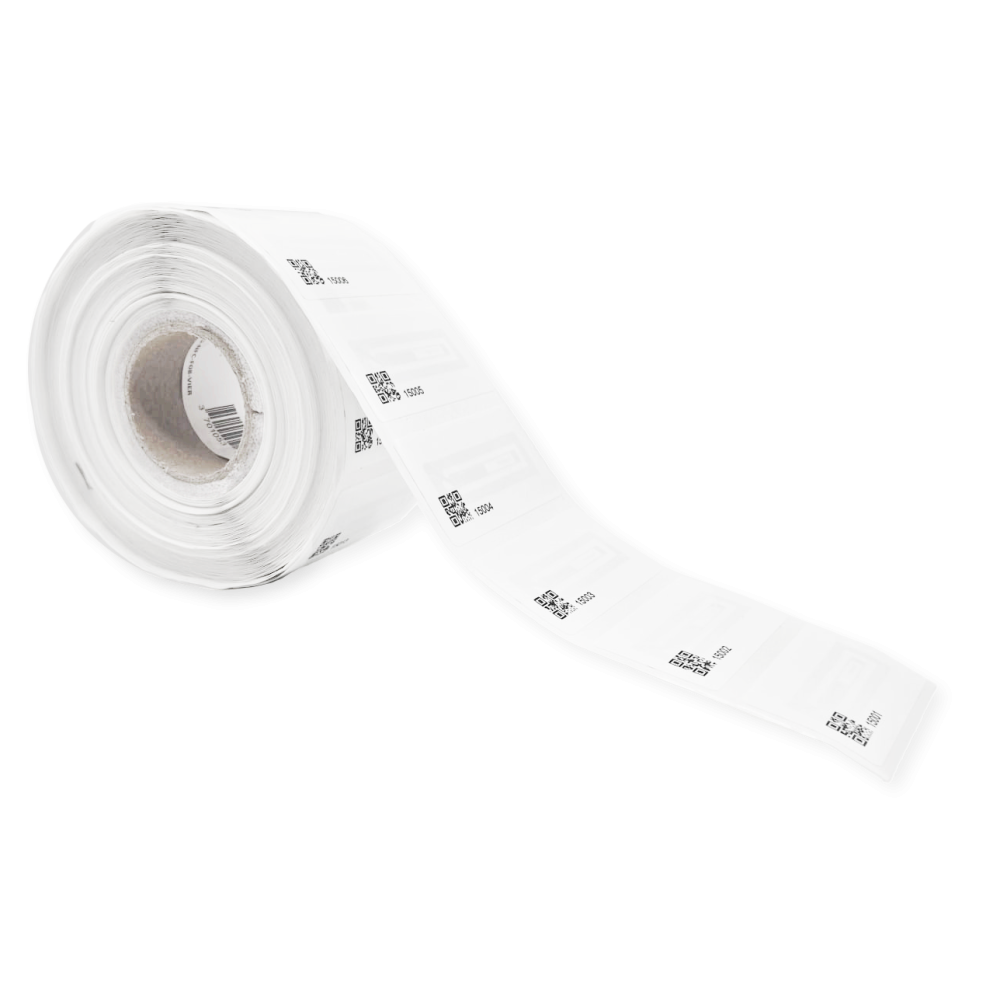

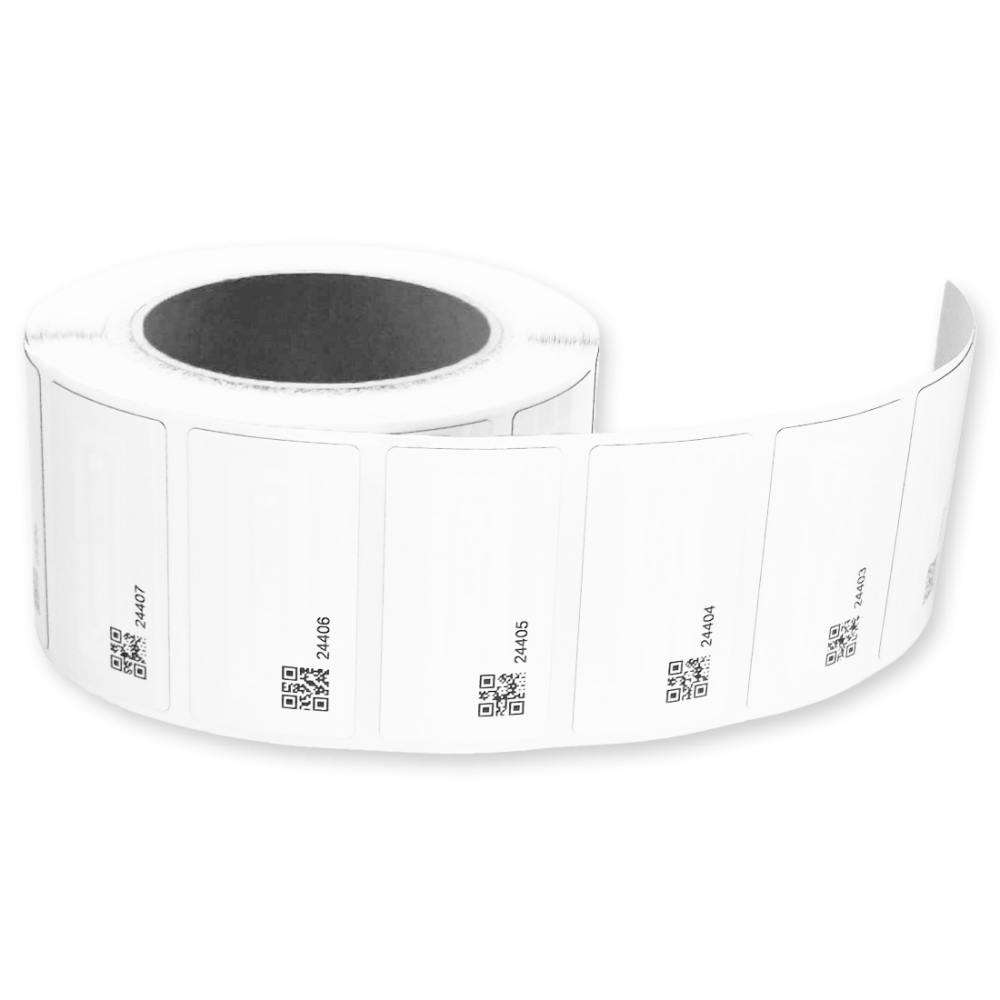

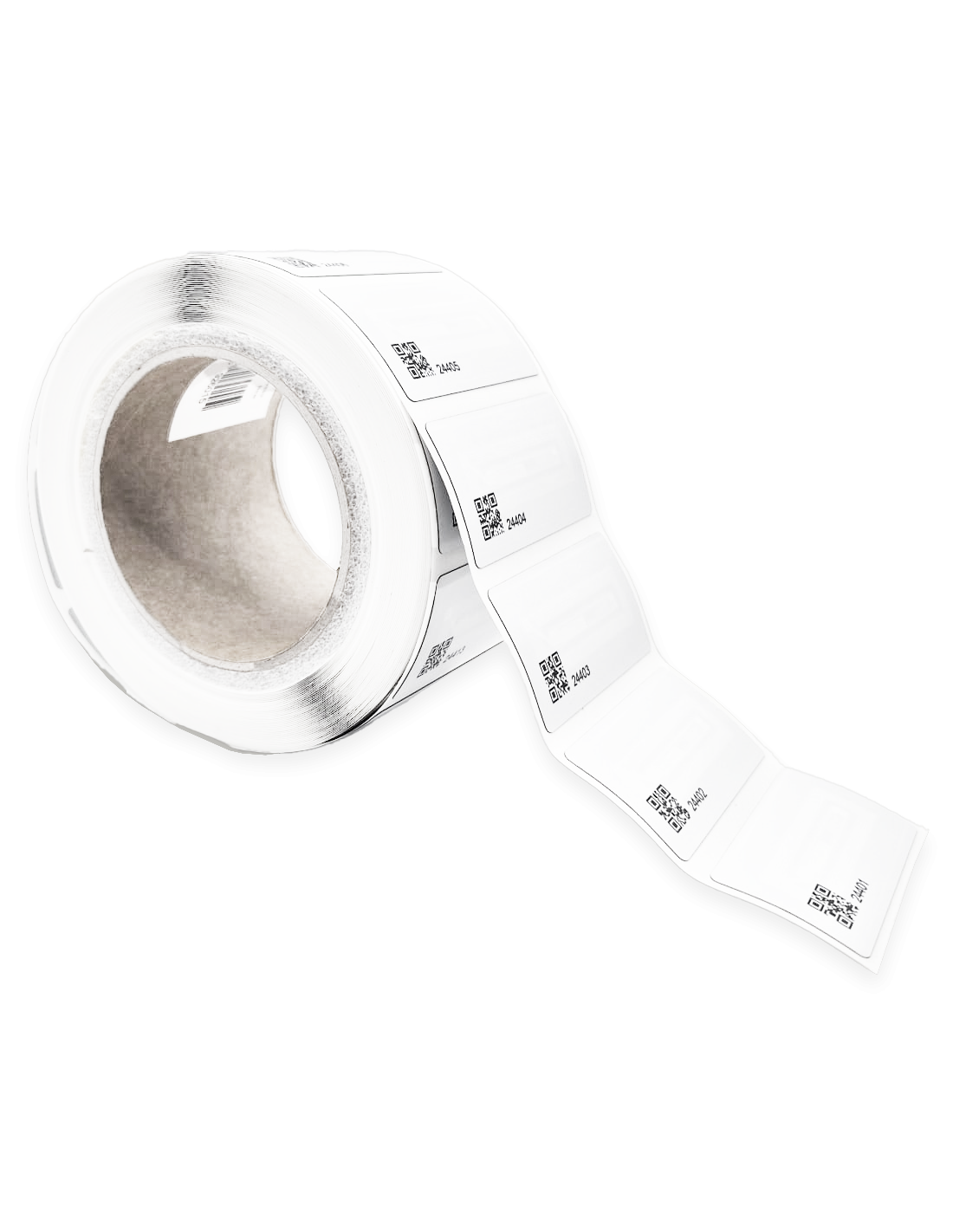

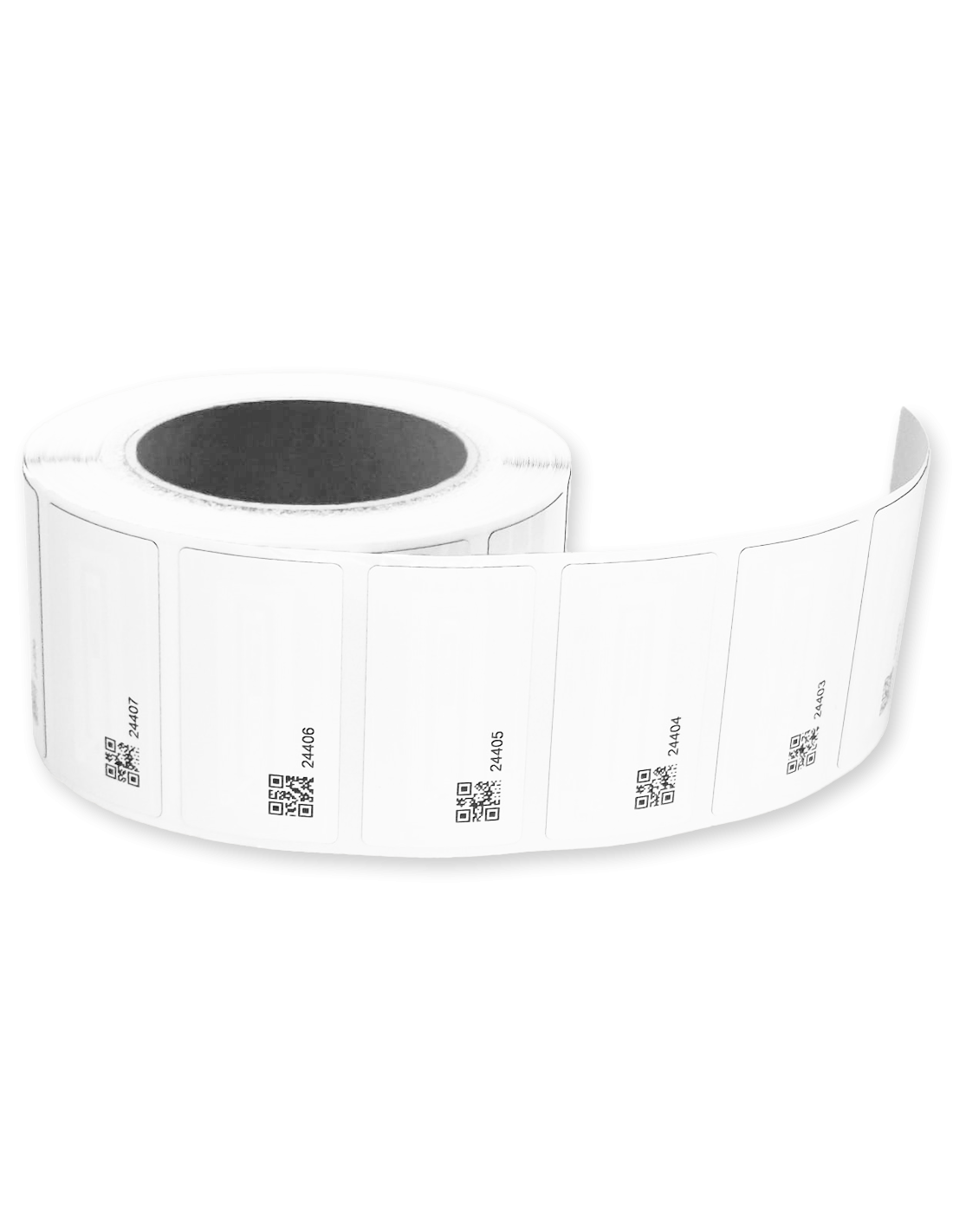

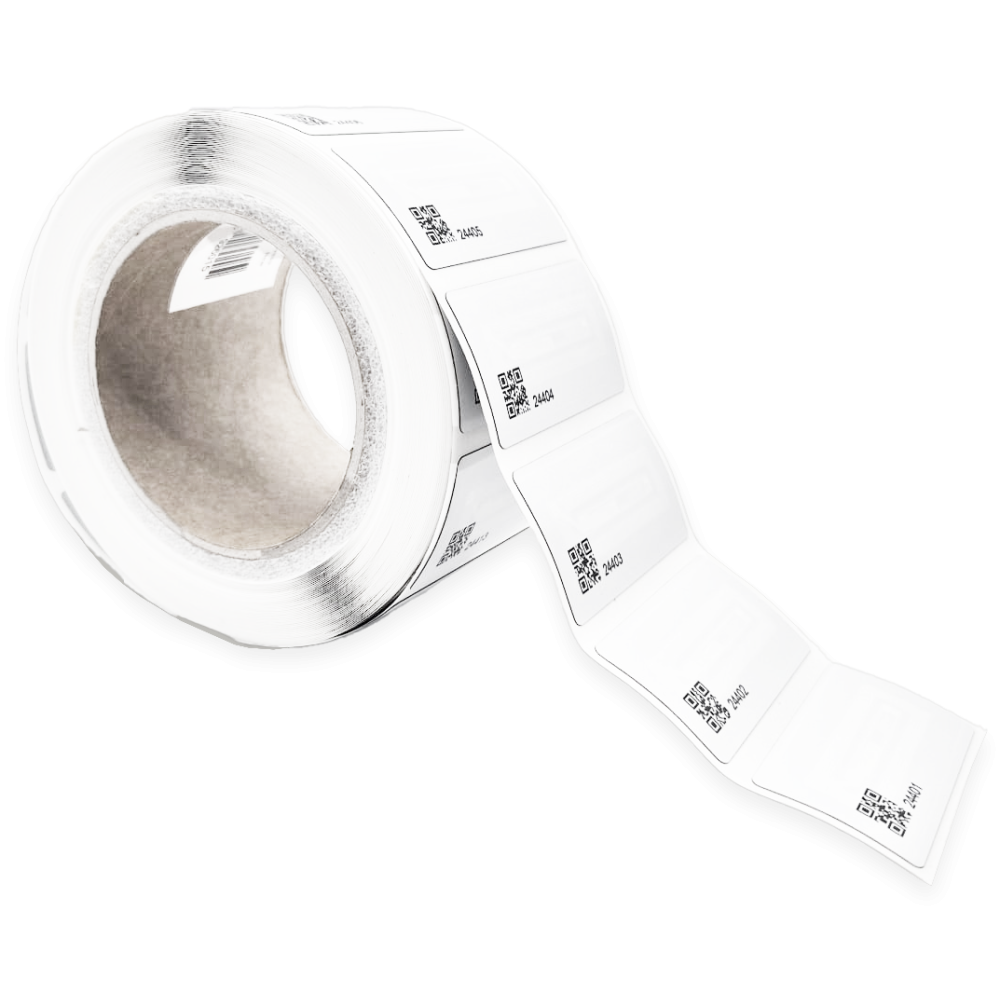

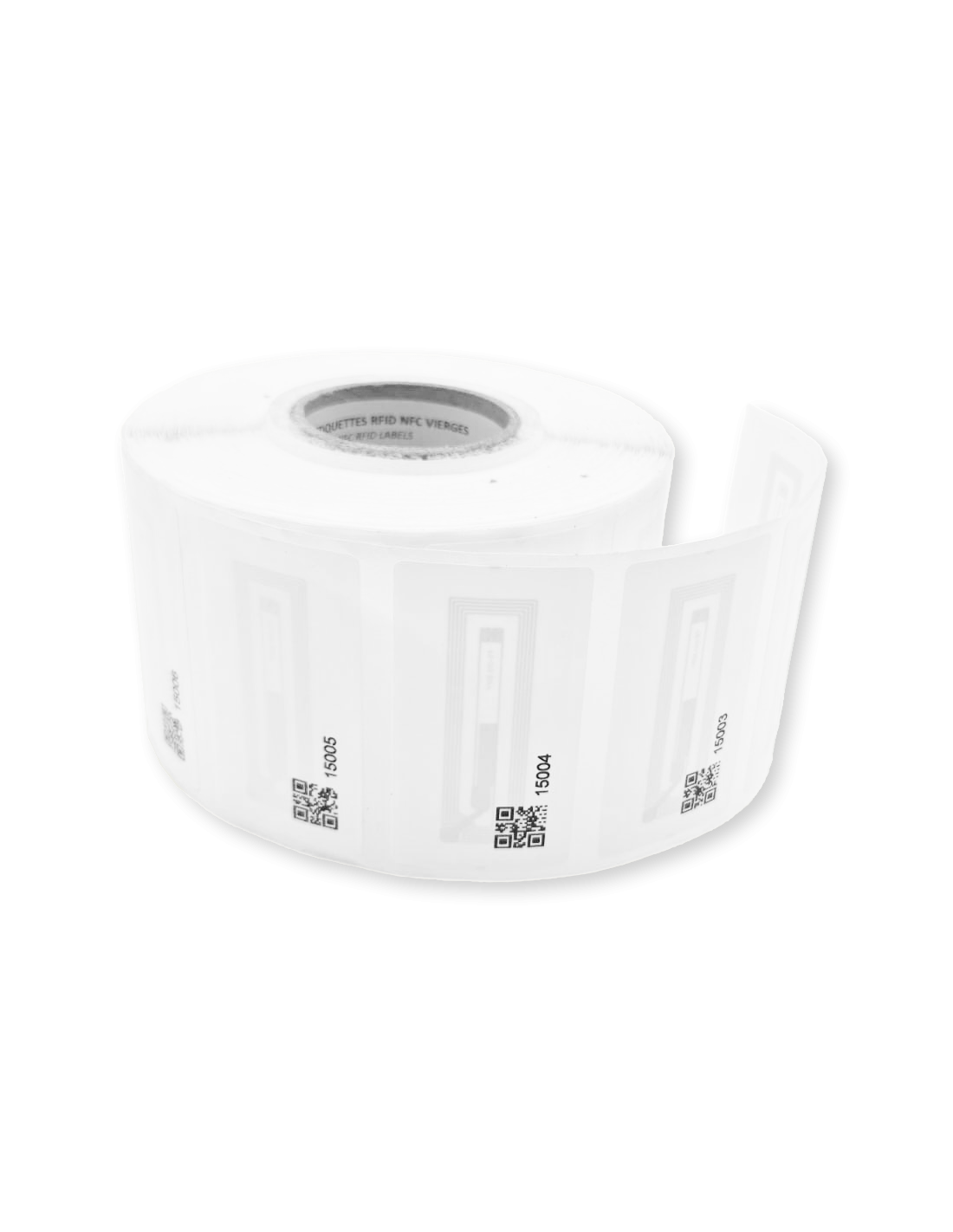

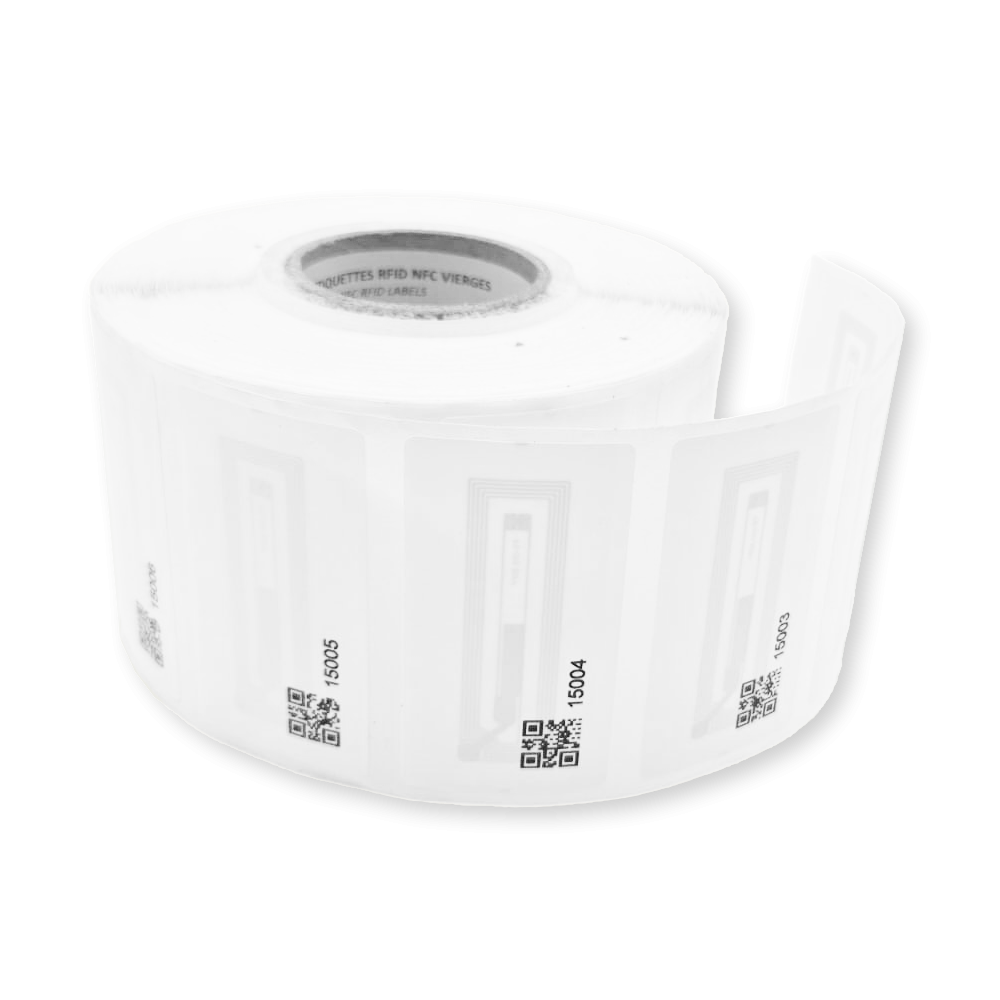

- For all surfaces: 1,000 labels per roll.
- For metal surfaces: 400 labels per roll.
HF and NFC technologies to meet your short-range tracking needs
NFC technology (Near Field Communication) operates at a very short range, usually just a few centimeters. Equipped with NFC chips, our labels enable immediate, secure connections simply by bringing a compatible reader or smartphone close. Unlike UHF labels, which require a dedicated reader, NFC labels can be read directly with a smartphone, making them a more accessible and cost-effective solution.
This technology is ideal for:
- Contactless payments.
- Access badges.
- Transit cards.
- Inventories using a smartphone.
Thanks to their ease of use, NFC labels are perfect for applications requiring quick, intuitive interaction, as well as for use cases where items need to be scanned one by one.
HF technology uses the same 13.56 MHz frequency as NFC but offers a slightly longer range, up to 1 meter. It is better suited for applications requiring short-to-medium distance reading, such as:
- Library tracking.
- Small-area inventories.
- Security checkpoints.
As a result, our HF/NFC labels provide a broader reading range while maintaining excellent accuracy.
The difference between all-surface RFID and On-Metal RFID
All-surface RFID labels can be subject to interference when used on metal surfaces. That’s why we offer On-Metal RFID labels, specifically designed for these environments, with optimized adhesive and structure to maintain stable reading performance even on metal surfaces.
Extensive compatibility with smartphones and professional devices
The Fudan N213 NFC chip is compatible with a wide range of smartphones, both Android and iOS with native NFC functionality. These can read the labels without any additional application, thanks to NDEF message support. Furthermore, this chip works perfectly with professional devices such as the Zebra TC22/27, providing a robust and reliable solution for stock management, ticketing, or access control applications. This level of compatibility ensures maximum flexibility for your operational needs.
Why choose our RFID labels?
- Versatility: suitable for a wide variety of surfaces and applications.
- Enhanced security: data programming and encryption for greater safety.
- Performance: long read distances for real-time product tracking.
